Comma Oil Single Pallet Goods Lift 500 kg Capacity

Comma Oil Single Pallet Goods Lift 500 kg Capacity

Comma Oil Single Pallet Goods Lift 500 kg Capacity

  • Manufacture and install 1 off External guard system for both upper and lower floors

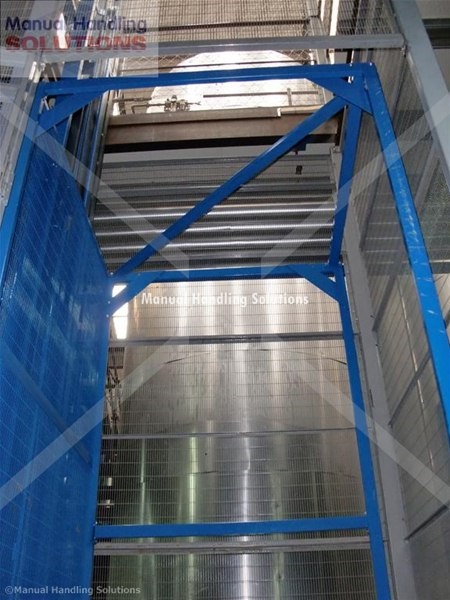

  • The lift will be supplied with a 4 sided full height external guard, extending 4.7m above the 1st floor level, 1800mm wide and 1900mm deep
  • Single outwards opening gate at ground level & 1st floor level. The gates will be fitted with electrical interlocks to prevent opening when the lift is not parked.
  • Gate height will be approx 4.2m at both levels. TBC
  • Installation of the lift at – Comma Oil, Dering Road, Gravesend, Kent, DA12 2QX
Comma Oil Single Pallet Goods Lift 500 kg Capacity Comma Oil Single Pallet Goods Lift MHS installed at Comma Oil Single Pallet Goods Lift 500 kg Capacity Manual Handling Solution installed at Comma Oil Single Pallet Goods Lift 500 kg Capacity MHS Goods Lift 500 kg Capacity Manual Handling Solutions Goods Lift 500 kg Capacity Comma Oil Small Goods Lift by MHS Comma Oil Small Goods Lift by Manual Handling Solutions MHS Goods Lift Manual Handling Solutions Goods Lift Goods Litfs from Manaul Handling Solutions lightbox MACby VisualLightBox.com v6.1

For the design, manufacture and install of a 1 off mast-type goods lift to be installed through a mezzanine floor.

  • The lift will be constructed using a single mast which will be supported by the mezzanine floor structure as well as a framework mounted at ground level. The lift platform will measure approximately 1500mm wide by 1500mm deep and will close down over the legs.
  • The lift will be mounted in an existing pit to allow the platform to fit flush with the ground floor in the lowered position.
  • The clear working platform area will be 1440mm x 1440mm
  • The overall plan size of the lift will be approx 1500 wide x 1750mm deep
  • The platform will feature 1100mm high rails on all sides and a single outwards opening gate on sides A & B. The gates will lock with a gravity system but will also be sensed to prevent platform movement if the gate is open.
  • The platform will close to the floor and have a total raised height of 5000mm plus the mezzanine floor thickness (TBC)
  • The maximum lift height will be governed by a limit switch system to ensure that the platform parks with the mezzanine upper floor.
  • The hydraulic power pack will be mounted to the mast and electrical system will be housed in a separate wall mounted box at ground level.
  • Control points will be positioned at both ground and upper floor levels. Both points will feature latching call buttons and emergency stop controls.
  • Power requirement: 415V 3 phase + Neutral via 16amp isolator (Supplied by customer)
  • Motor specification: 1.5Kw 3phase 415V with 3ltr reservoir
  • Maximum lift capacity will be 500Kg
  • Decommissioning of the existing unit
