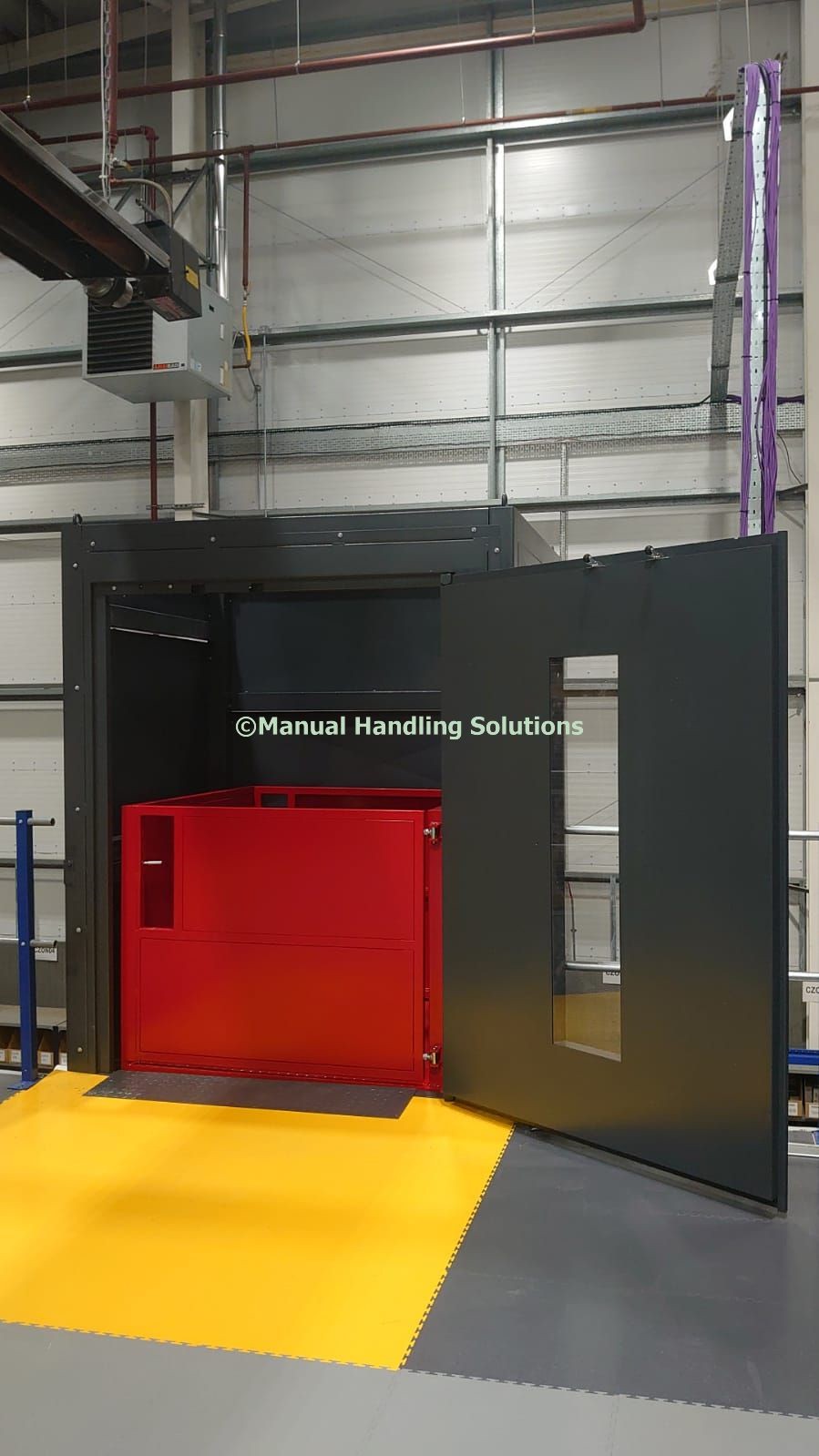

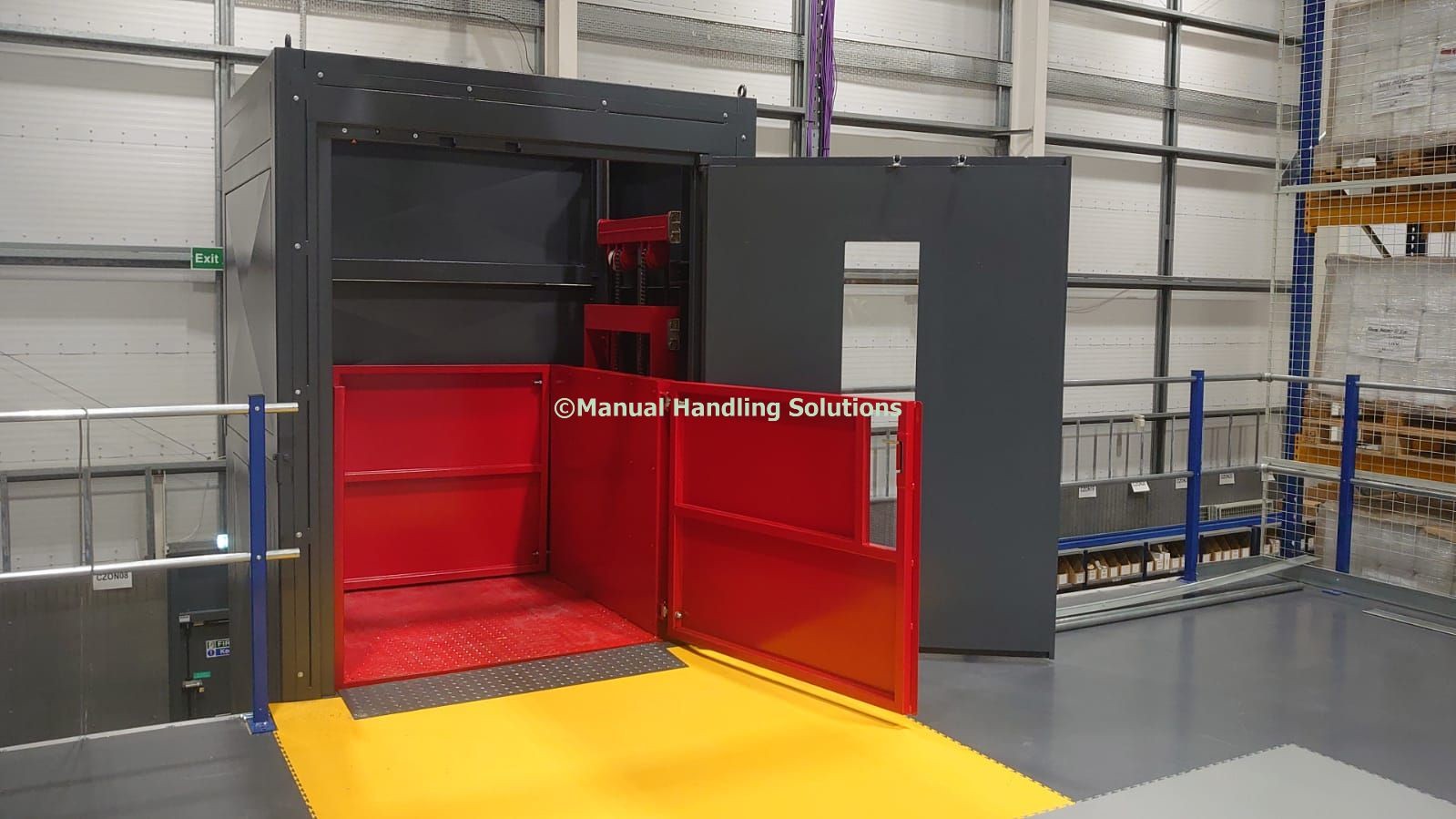

Single column custom made through car hydraulic Mezzanine Goods Lift 500kg capacity installed Armada Way Beckton, London, E6 7AB with a finished floor level 3500mm and a platform size 1300mm x 1300mm fitted with 1100mm high infilled panels on the non-loading sides and single opening interlocked gate finished in Traffic Red RAL 3020

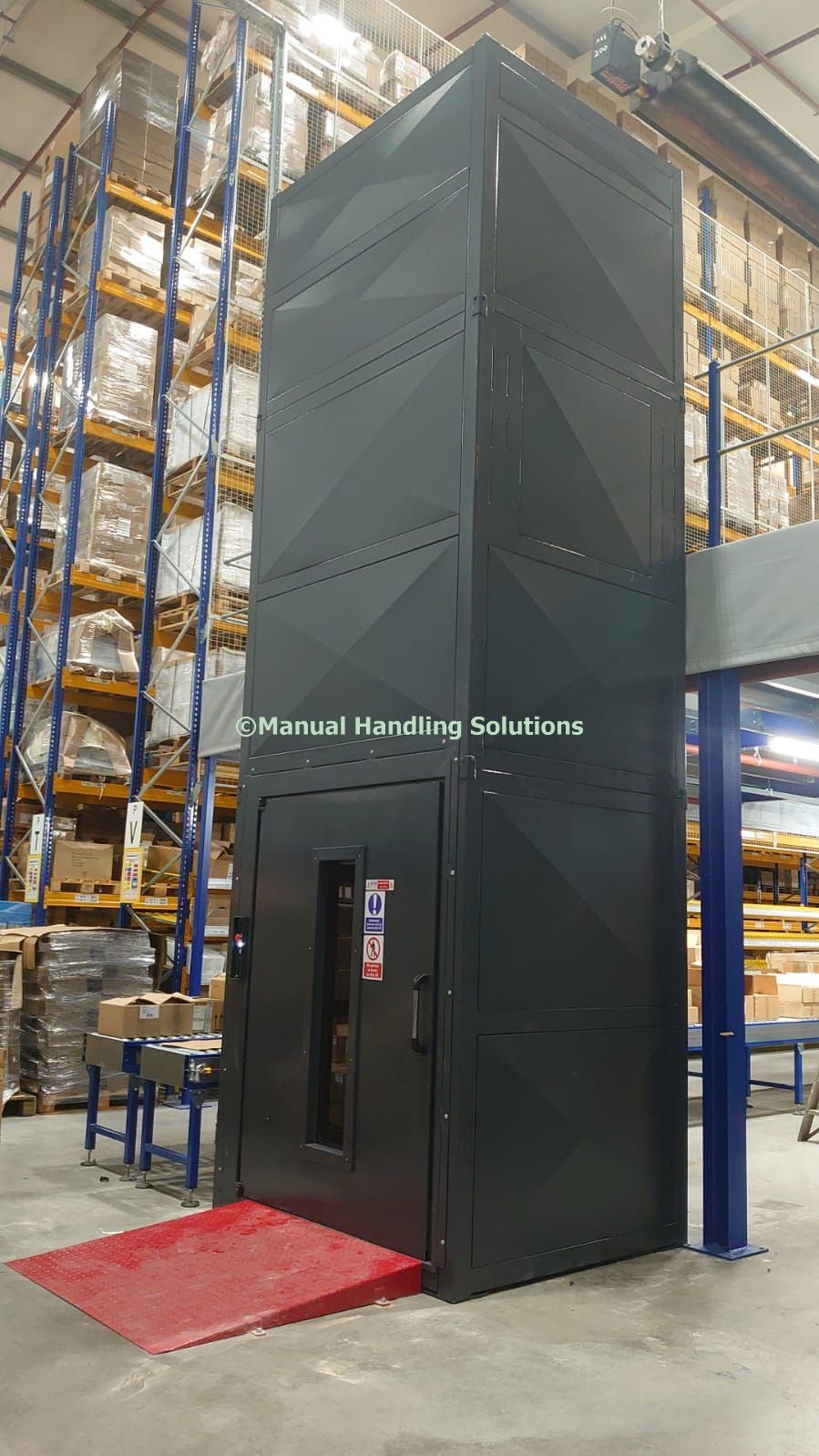

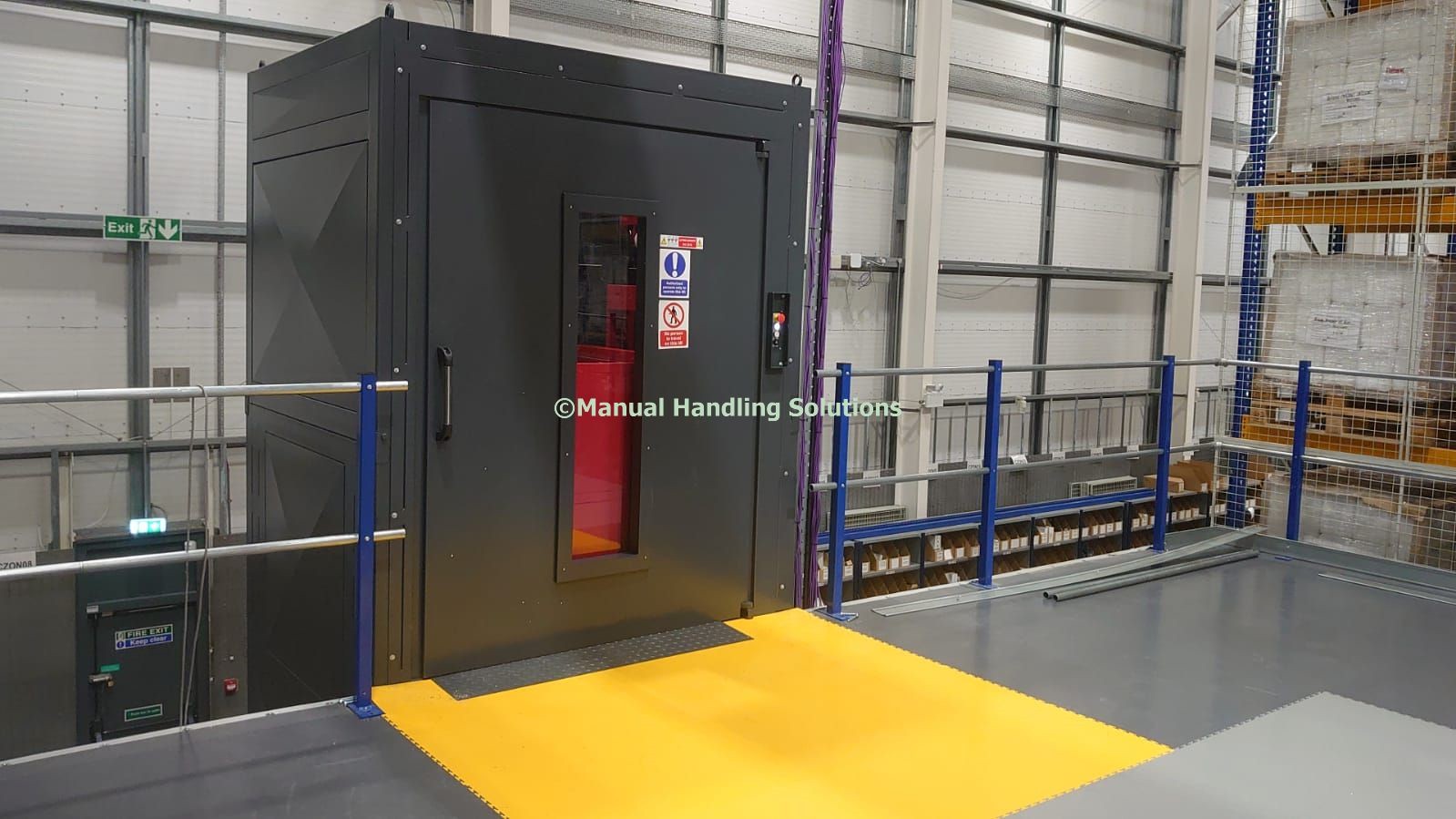

A self-supporting lift structure manufactured from 100mm x 100mm box section steel with clad infilled panels Grey RAL 7024. Goods lift fitted with 2000mm high single loading door cladded with a Perspex viewing panel at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper-level structure is 2250mm. “Press to Go” one touch controls with emergency stop at both levels fitted as standard.

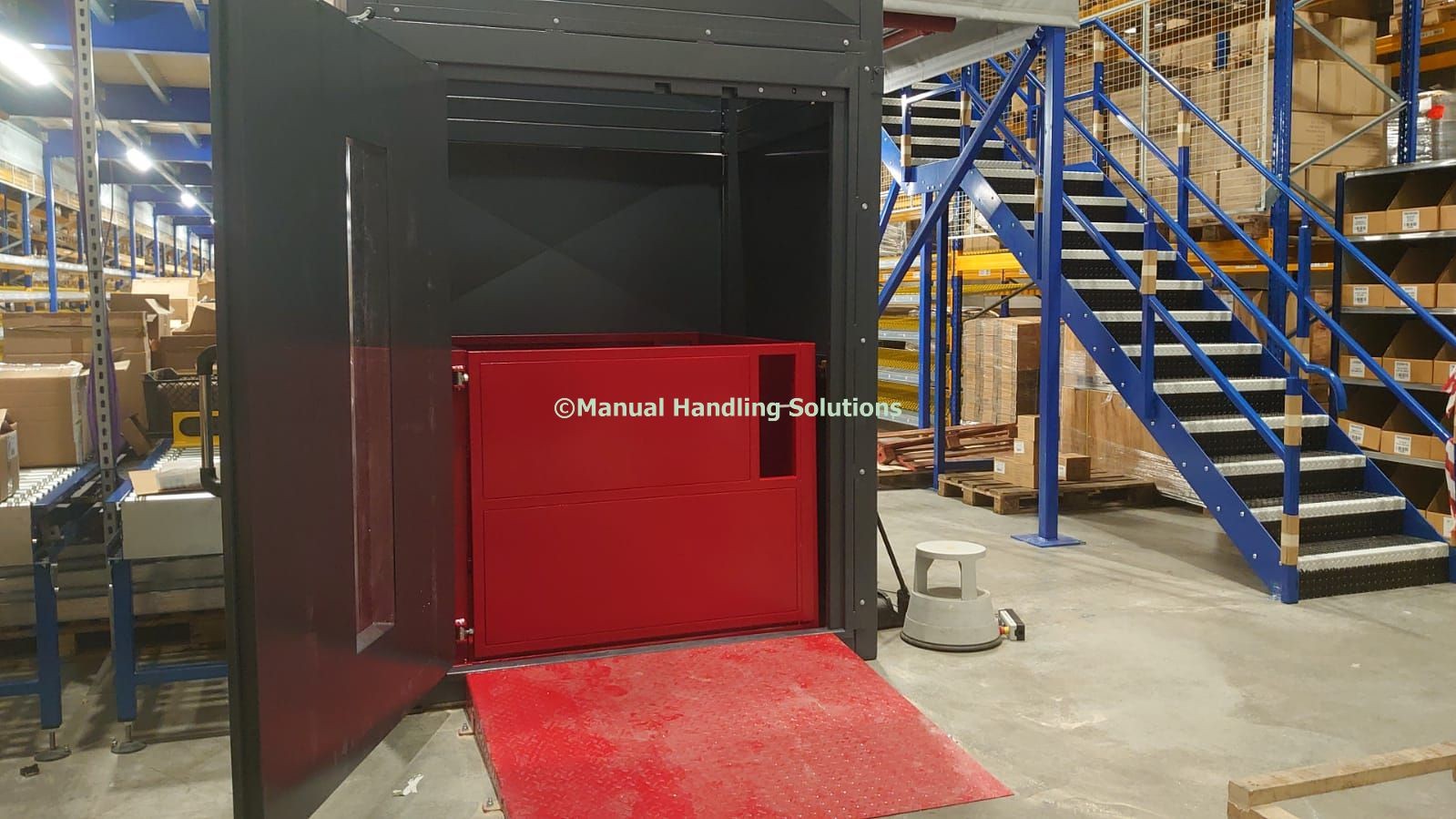

At the lower level, a fixed ramp 1250mm long x 1380mm wide will be provided to assist loading on to the 120mm deep platform finished Red RAL 3020

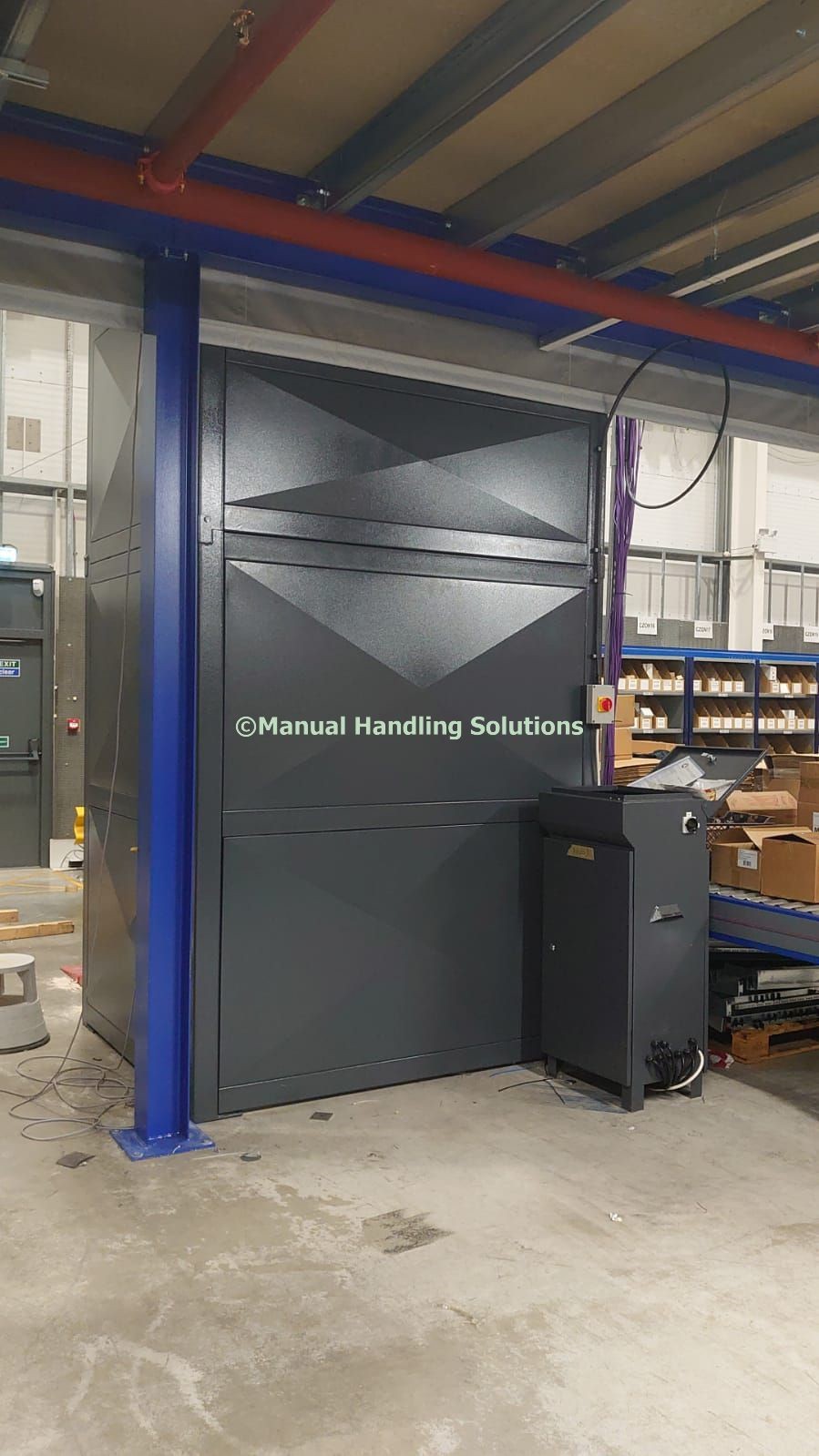

To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm.

General Specification

Emergency lowering system when power is cut off.
Prewired control box included magnetic starter and overload fuse.
Upper-level travel limit switch and overload relief valve.
Hydraulic cylinders feature emergency velocity fuse if line breaks.
Control points are fitted to both ground and upper floor levels.
The hydraulic power pack and electrical system housed separately at ground level.
The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
Electrics 3 phase, 400v, 1.5Kw
Control voltage 24-volt IP55.
Installation; (2^nd Lift) Armada Way, Beckton, London, E6 7AB

lightbox MACby VisualLightBox.com v6.1

Here at Manual Handling Solutions (MHS) we pride ourselves in providing the right solution to our clients for their application in a cost effective and timely manner. Our hydraulic Goods Lifts allow effortless press-button vertical movement of goods between storage levels. They are ideal for moving stock to and from mezzanine floors and significantly improve warehouse safety by reducing the risk of employee injury from lifting and carrying goods between levels. Manual Handling Solutions hydraulic goods lifts play a vital role in the movement of goods between single and multi-floor levels providing solutions for retail, manufacturing, supermarkets, and distribution centres. We custom design a goods lift system to specifically meet your needs.

If you have any questions about our goods lifts or would like assistance with finalising your goods lift design, Manual Handling Solutions are available to answer any queries you may have. We are happy to talk you through our diverse range of bespoke goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.
