Mezz Goods Lift Bedford

Mezz Goods Lift Bedford

Double column 1000kg 3 stop hydraulic Mezz Goods Lift through car installed Fuse Business Park, Wilstead, Bedford MK42 6EY with a finished floor level 5300mm and platform size 2400mm x 1500mm. Platform cabin with LED fitted 2 sides with 1900mm high infilled panels on the non-loading sides and 1900mm high twin opening interlocked gates on loading side finished in Red RAL 3001. Mezz Goods lift supplied with loading ramp H120mm x W2480mm x L1250mm.

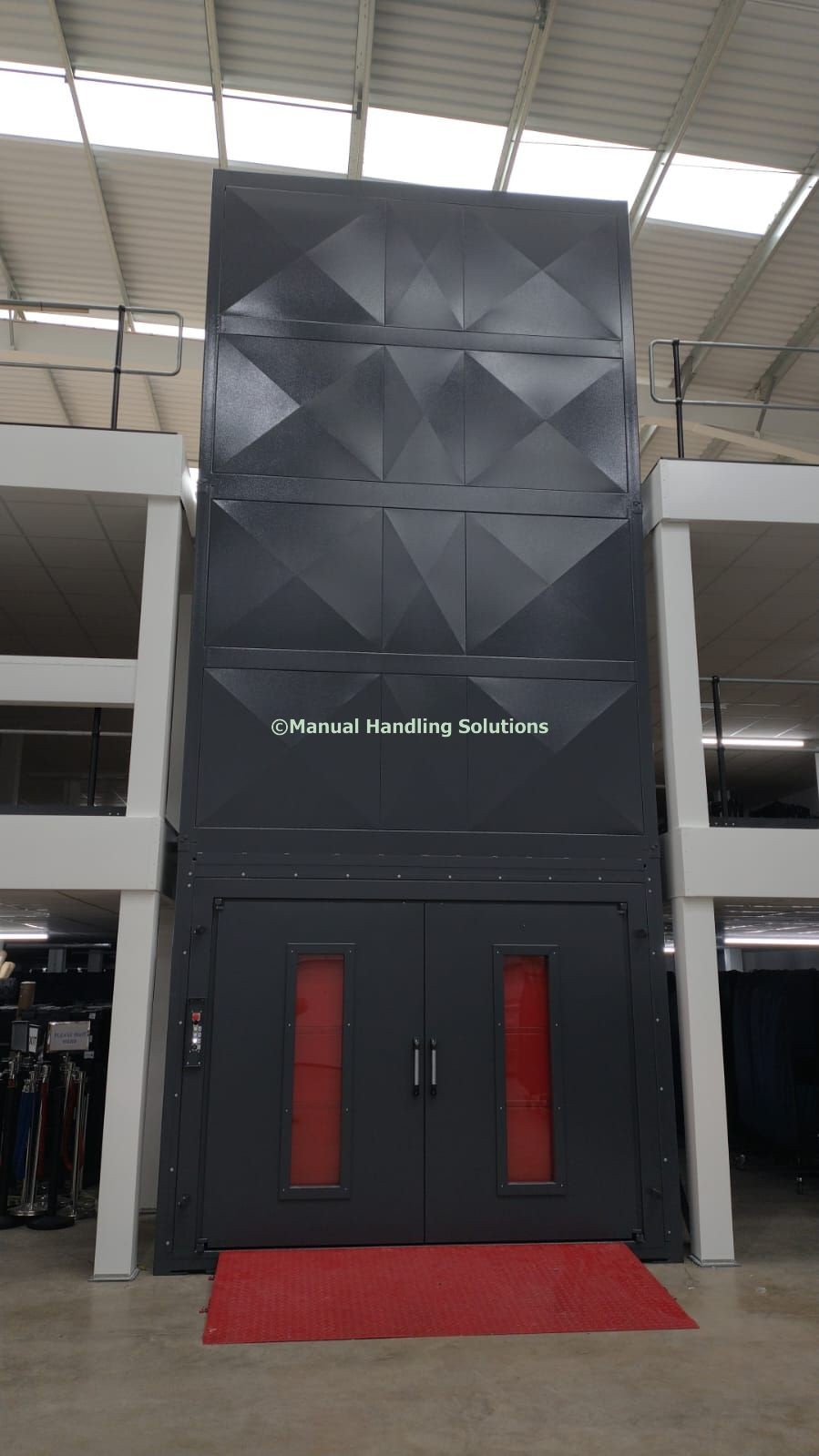

Mezz Lift Bedford is a self-supporting lift structure manufactured from 120mm x 120mm box section steel with clad infilled panels Grey RAL 7024. Mezzanine Goods lift fitted with 2000mm high twin loading doors cladded with Perspex viewing panel at all entrances and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper-level structure is 2290mm.

Mezz Goods Lift platform fitted with shoot bolts to stabilise the platform and remove any hydraulic ‘bounce’ when fully loaded at the upper floors. “Press to Go” one touch controls with emergency stop at all entrances and levels fitted as standard.

To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D600mm x L1000mm x H1300mm. Electrics 3 phase, 400v, 5.5Kw control voltage 24-volt IP55.

General Specification

Emergency lowering system when power is cut off.
Prewired control box included magnetic starter and overload fuse.
Upper-level travel limit switch and overload relief valve
Hydraulic cylinders feature emergency velocity fuse if line breaks.
Control points are fitted to both ground and upper floor levels.
The hydraulic power pack and electrical system housed separately at ground level.
The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
Mezzanine goods liftsare CE plated and built-in compliance with the Machinery Directive 2006/42/EC
Installation; Fuse Business Park, Wilstead, Bedford MK42 6EY

Custom Lifts from Manual Handling Solutions

picture photo siteby VisualLightBox.com v6.1

Warehouses often require flexible and cost-effective solutions to move goods and materials from ground floors to raised storage platforms and mezzanine floors. The range of hydraulic mezz lifts from Manual Handling Solutions provides the ideal solution to your vertical movement needs. Widely used for use in all types of buildings such as: Stores, Hotels, Warehouses, Factories, Supermarkets, Shopping areas, Construction, Medical, Distribution Facilities and Hospitality. Mezzanine pallet lifts facilitate the increased use of vertical space in storage areas and make it easy to safely and quickly transfer goods from first floor level to a raised floor or multi floor landings. Goods lifts can also be installed along the edge of the raised floor or in a specially cut aperture within in the mezzanine.

Manual Handling Solutions continues to build its reputation by delivering on time and on budget and by paying attention to every detail. If you would like any more information in relation to goods lifts and the services we provide, please do not hesitate to contact us and we will be happy to offer you advice and guidance in relation to your queries. Trade enquires welcome.

Mezz Goods Lifts covering; Bedford, Wilstead, Bromham, Elstow, Milton Keynes, Kempston, Ampthill, Flitwick, Biggleswade, Shortstown, Great Barford
