Mezzanine Floor Goods Lift Coalville
 |

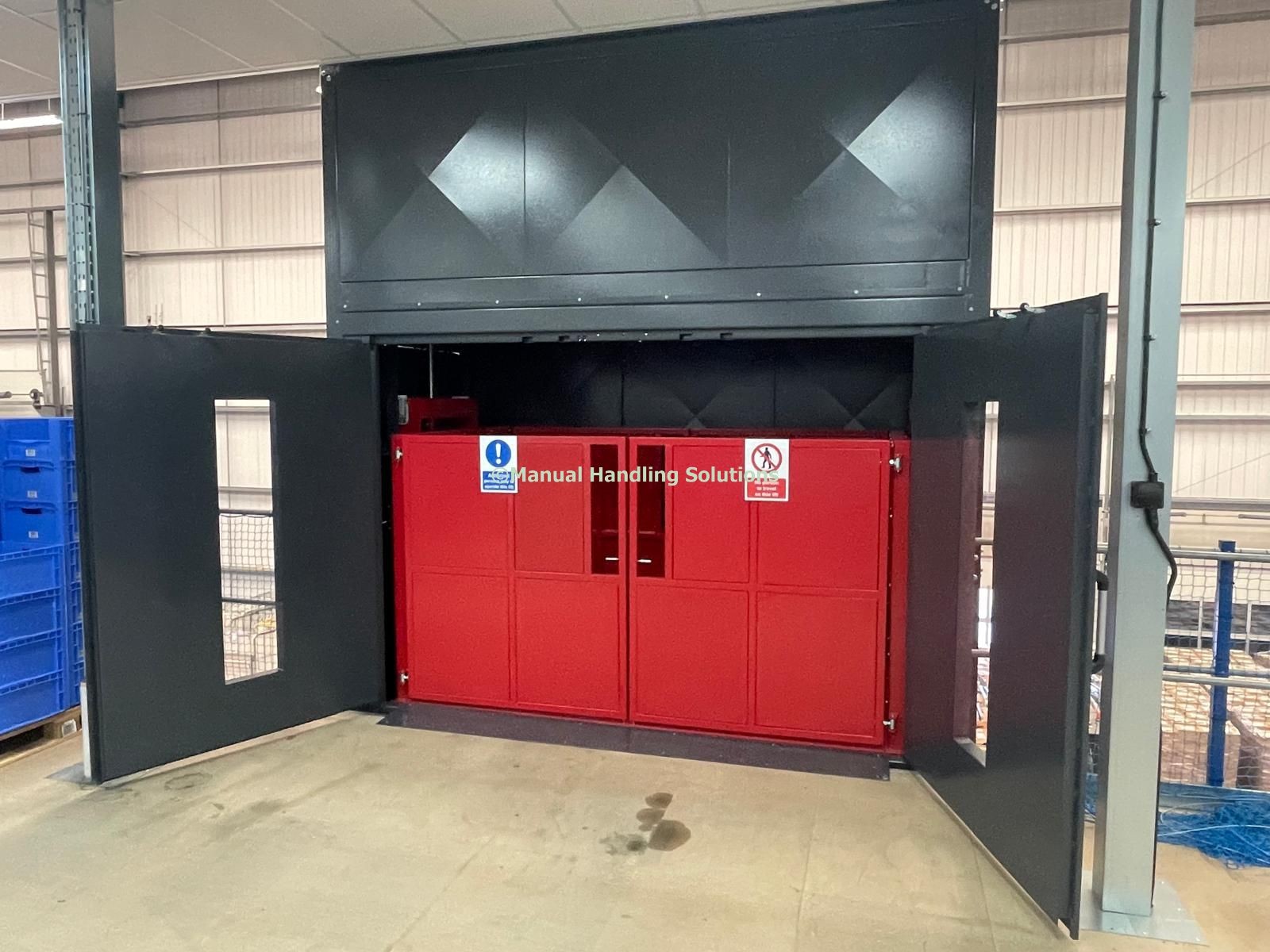

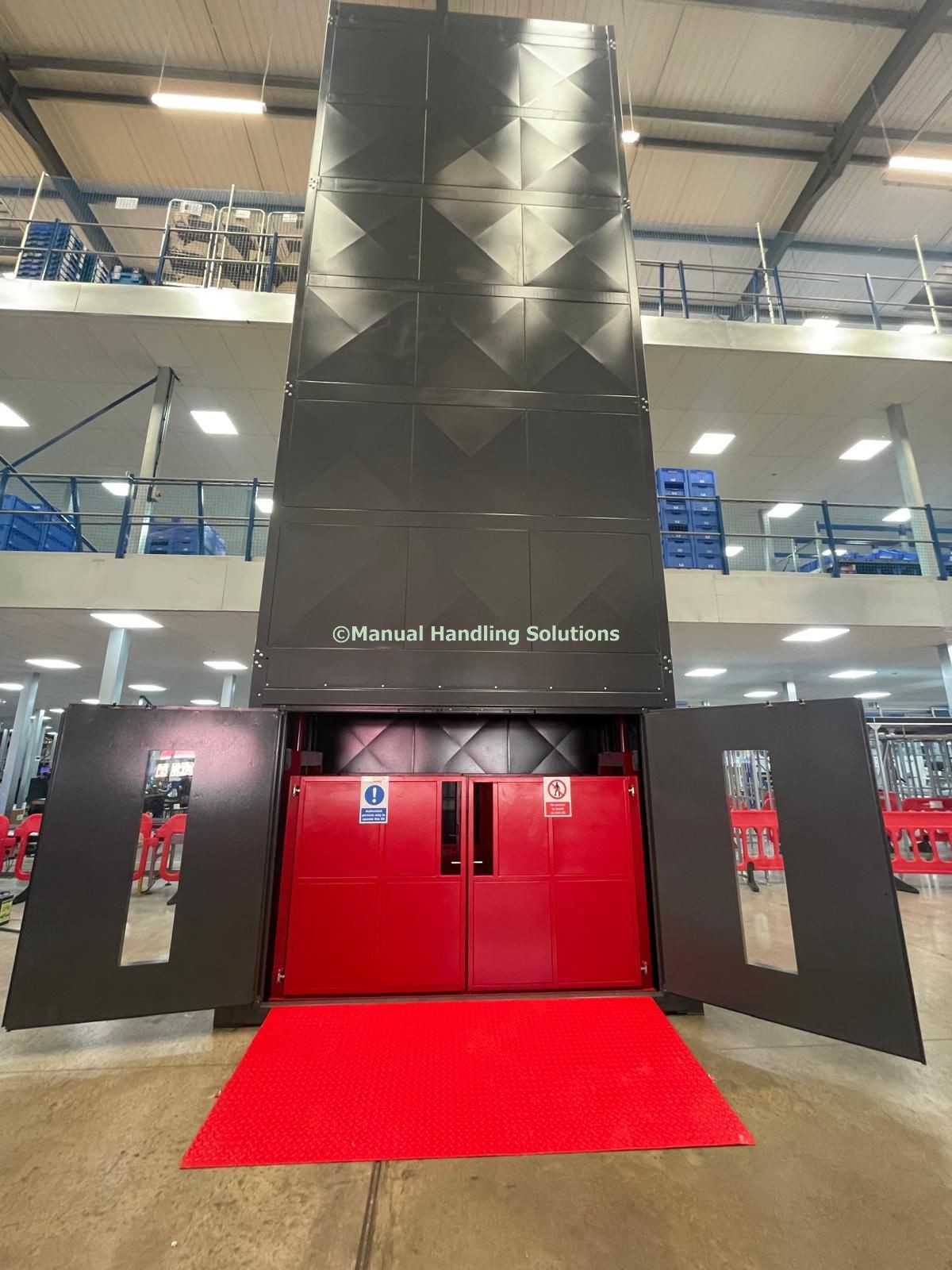

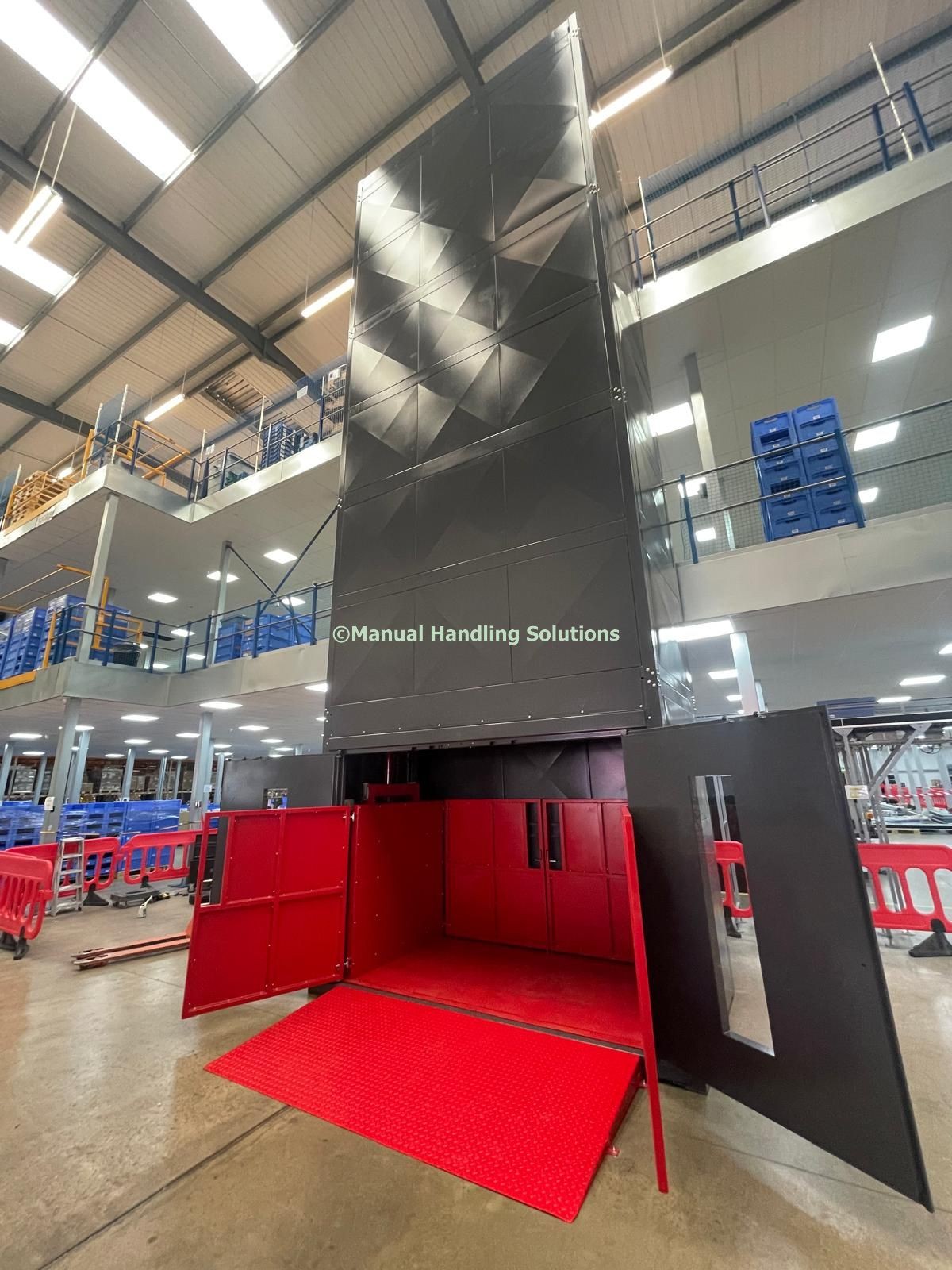

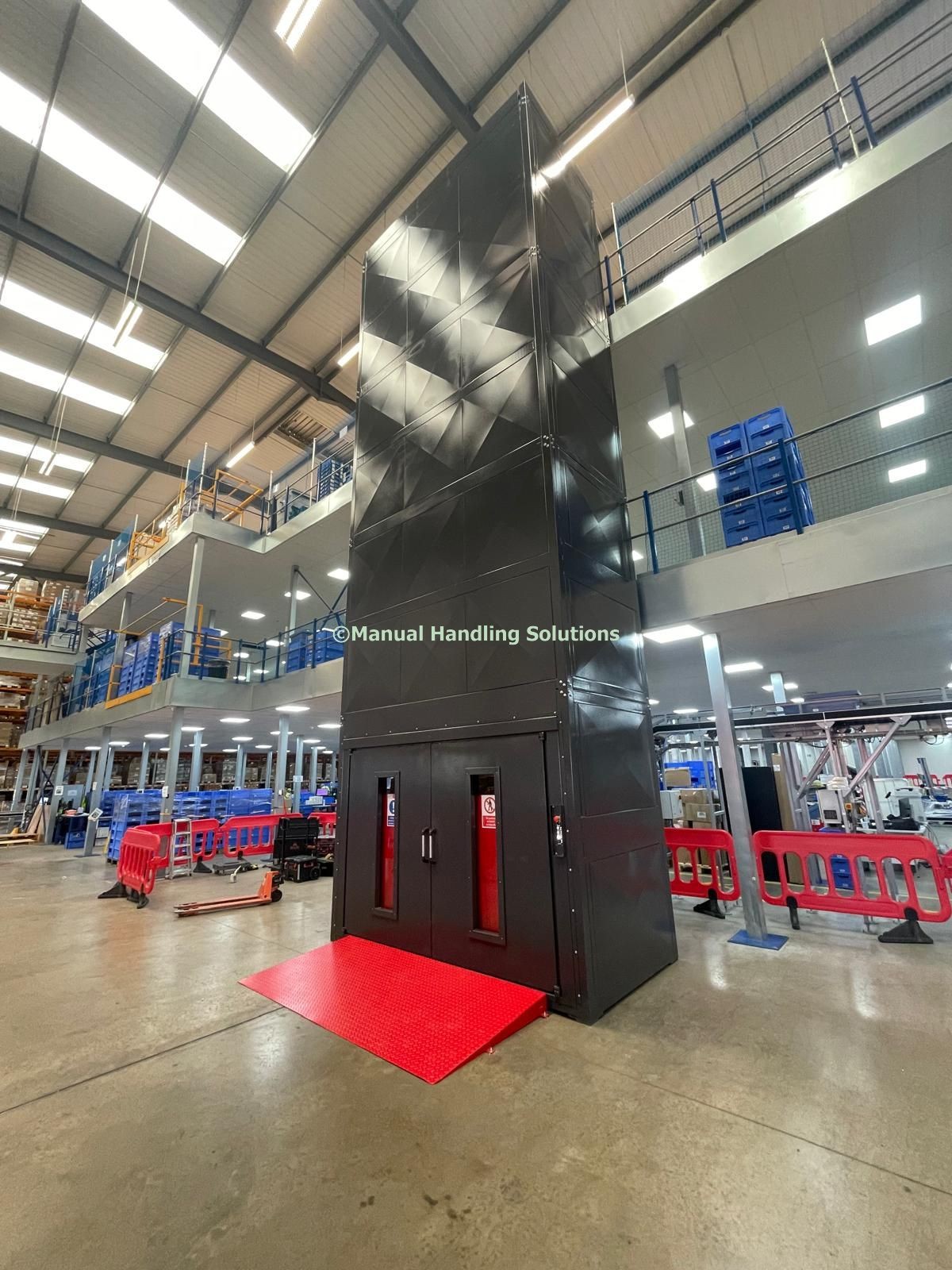

Mezzanine Floor Goods Lift Coalville Bespoke double column 1000kg 3 stop hydraulic Mezzanine Floor Goods Lift installed Robson Way, Ellistown, Coalville, Leicestershire LE67 1GQ with a finished floor level 7998mm and platform size 2600mm x 1500mm. Platform fitted 2 sides with 1500mm high infilled panels on the non-loading sides and 1500mm high twin opening interlocked gates on loading side finished in Red RAL 3001. At the lower level the lift can be accessed via a ramp W2600mm x L1250mm x H120mm Mezzanine Floor Goods Lift Coalville is a self-supporting lift structure manufactured from 120mm x 120mm box section steel with clad infilled panels Grey RAL 7024. Mezzanine Goods fitted with 2000mm high twin loading doors cladded with Perspex viewing panel at all entrances and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper-level structure is 2430mm. Mezz Lift platform fitted with shoot bolts to stabilise the platform and remove any hydraulic ‘bounce’ when fully loaded at the upper floor levels. “Press to Go” one touch controls with emergency stop at all levels fitted as standard. To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D700mm x L1520mm x H1300mm. Electrics 3 phase, 400v, 5.8Kw control voltage 24-volt IP55. |
General Specification
- Emergency lowering system when power is cut off.
- Prewired control box included magnetic starter and overload fuse.
- Upper-level travel limit switch and overload relief valve
- Hydraulic cylinders feature emergency velocity fuse if line breaks.
- Control points are fitted to both ground and upper floor levels.
- The hydraulic power pack and electrical system housed separately at ground level.
- The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
- Our Goods Lifts are CE plated and built-in compliance with the Machinery Directive 2006/42/EC
- Installation; Robson Way, Ellistown, Coalville, Leicestershire LE67 1GQ
Manual Handling Solutions – Goods Lifts offer bespoke custom designed materials handling and lifting equipment. We provide some of the most advanced handling equipment available from standard products to a bespoke solution. Our range of lifting equipment and materials handling products are by far the most sophisticated and technically advanced and manufactured to the highest standard. As a Handling Solutions provider our goal is to work closely with our customers and bring the most technically advanced handling products – solutions to market.
The range of bespoke goods lifts from Manual Handling Solutions provides the ideal solution to your vertical movement needs. Widely used in distribution facilities, warehouses, car dealerships, retail storage areas, museums, theatres, hotels, and many other environments, mezzanine lifts facilitate the increased use of vertical space in storage areas and make it easy to safely and quickly transfer goods from first floor level to a raised floor or multi floor landings. Mezz Goods lifts can also be installed along the edge of the raised floor or in a specially cut aperture within in the mezzanine.
A Goods Lift from MHS is a cost-effective solution to transport bulky or heavy items. Health and Safety obligations dictate that you must provide a safe and injury free workplace – a Mezz goods lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. Need something tailored to your specification then our custom-made lift services can help contact Manual Handling Solutions to discuss your exact requirements. Trade enquires welcome.
New from MHS – A “goods lift with 1 trained attendant” is a lift designed to transport heavy goods and one person simultaneously, allowing an attendant to operate the lift and manage the load within the car.
Mezzanine Floor Goods Lifts covering; Coalville, Leicester, Markfield, Bardon Hill, Ellistown, Ibstock, Hugglescote, Ashby-de-la-Zouch, Whitwick, Measham, Appleby Magna, Swadlincote, Ratby, Anstey, Glenfield.
