Mezzanine Floor Goods Lift Isle of Wight

Mezzanine Floor Goods Lift Isle of Wight

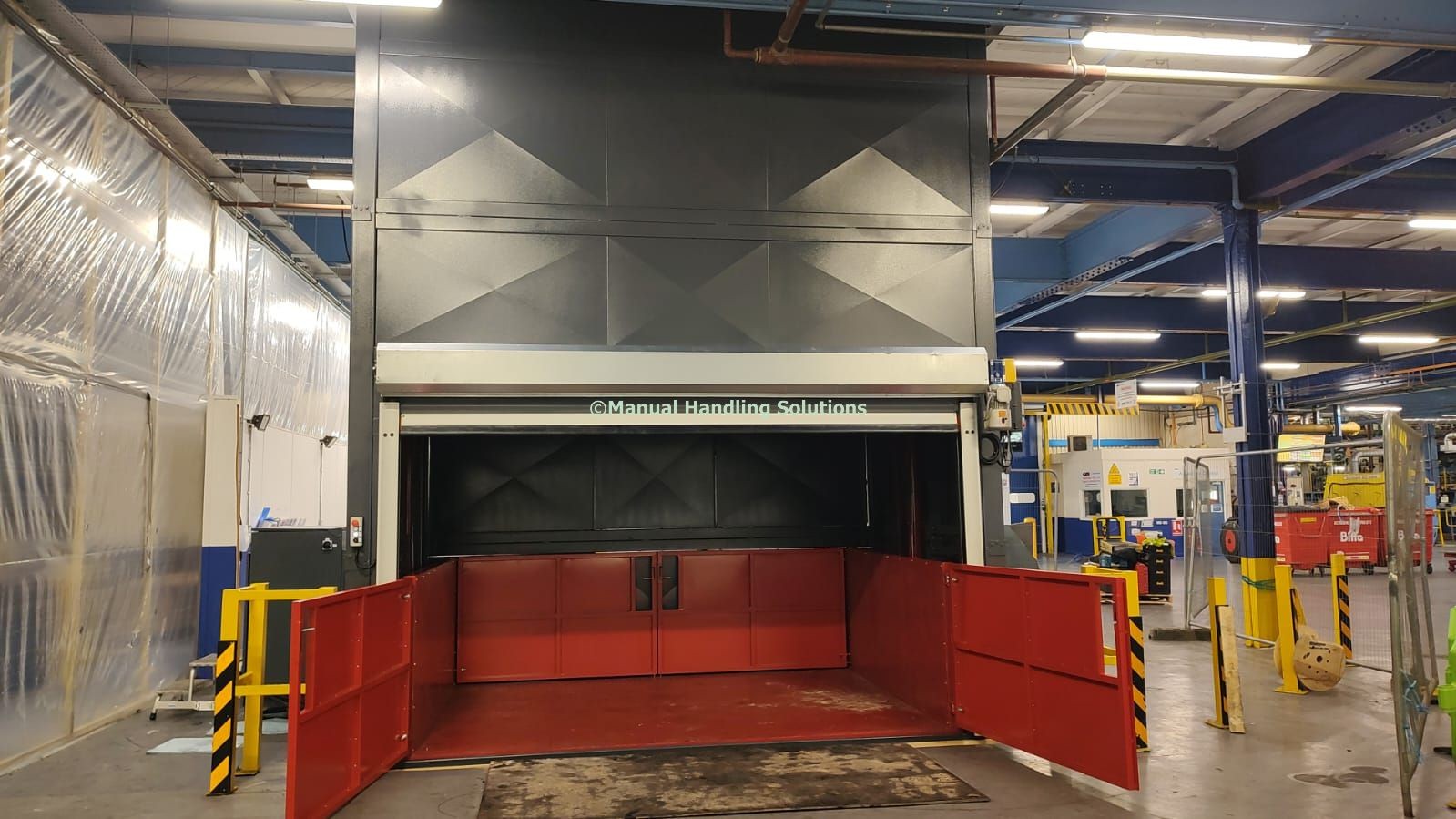

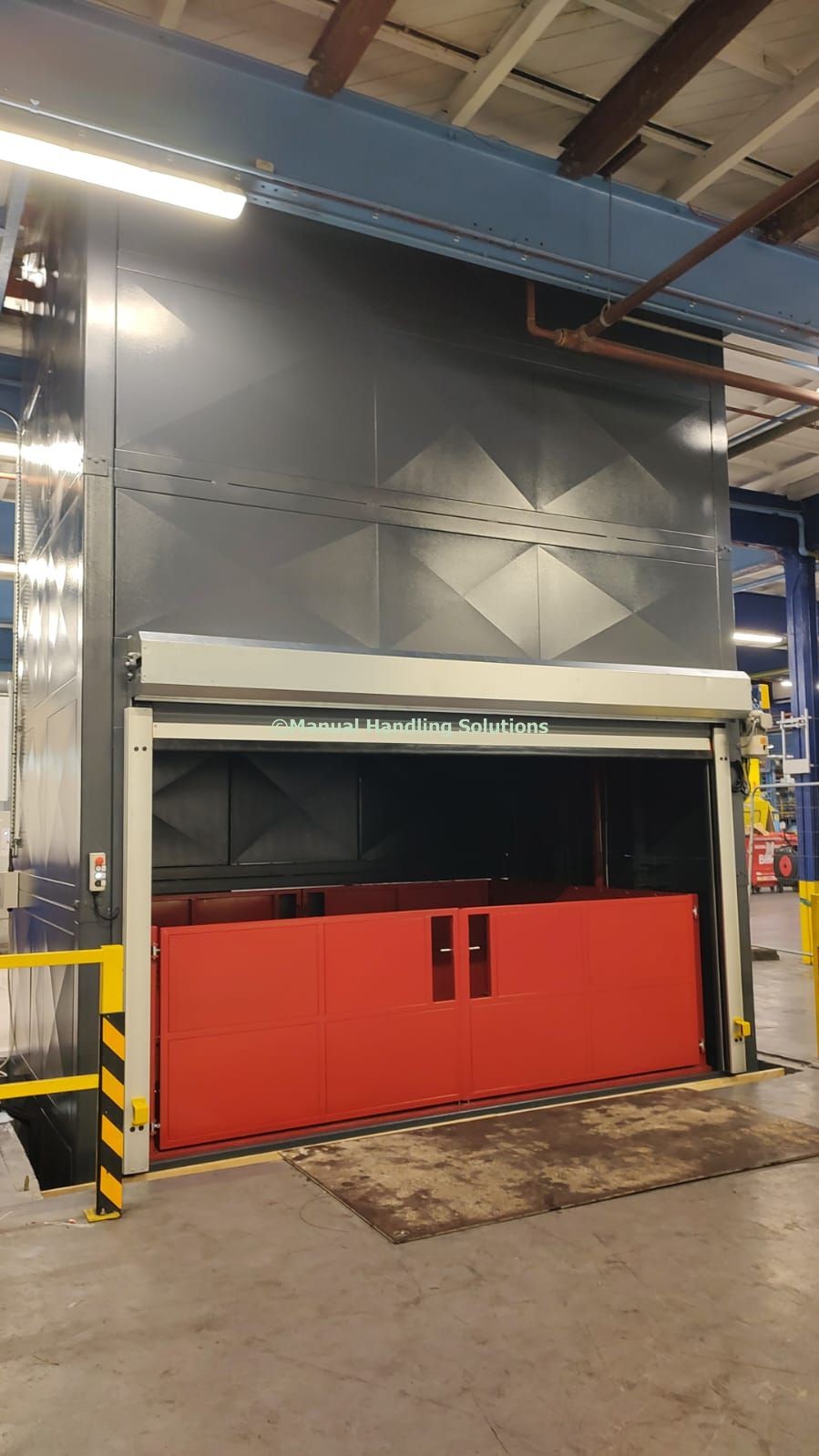

Hydraulic 3000kg 2 stop through car double column Mezzanine Floor Goods Lift installed Isle of Wight with a finished floor level 5500mm and platform size 3500mm x 2500mm. Platform fitted 2 sides with 1100mm high infilled panels on the non-loading sides and 1100mm high twin opening interlocked gates on loading side finished in Red RAL 3020. Goods lift recessed in a 1000mm deep pit for flush entry into the lift.

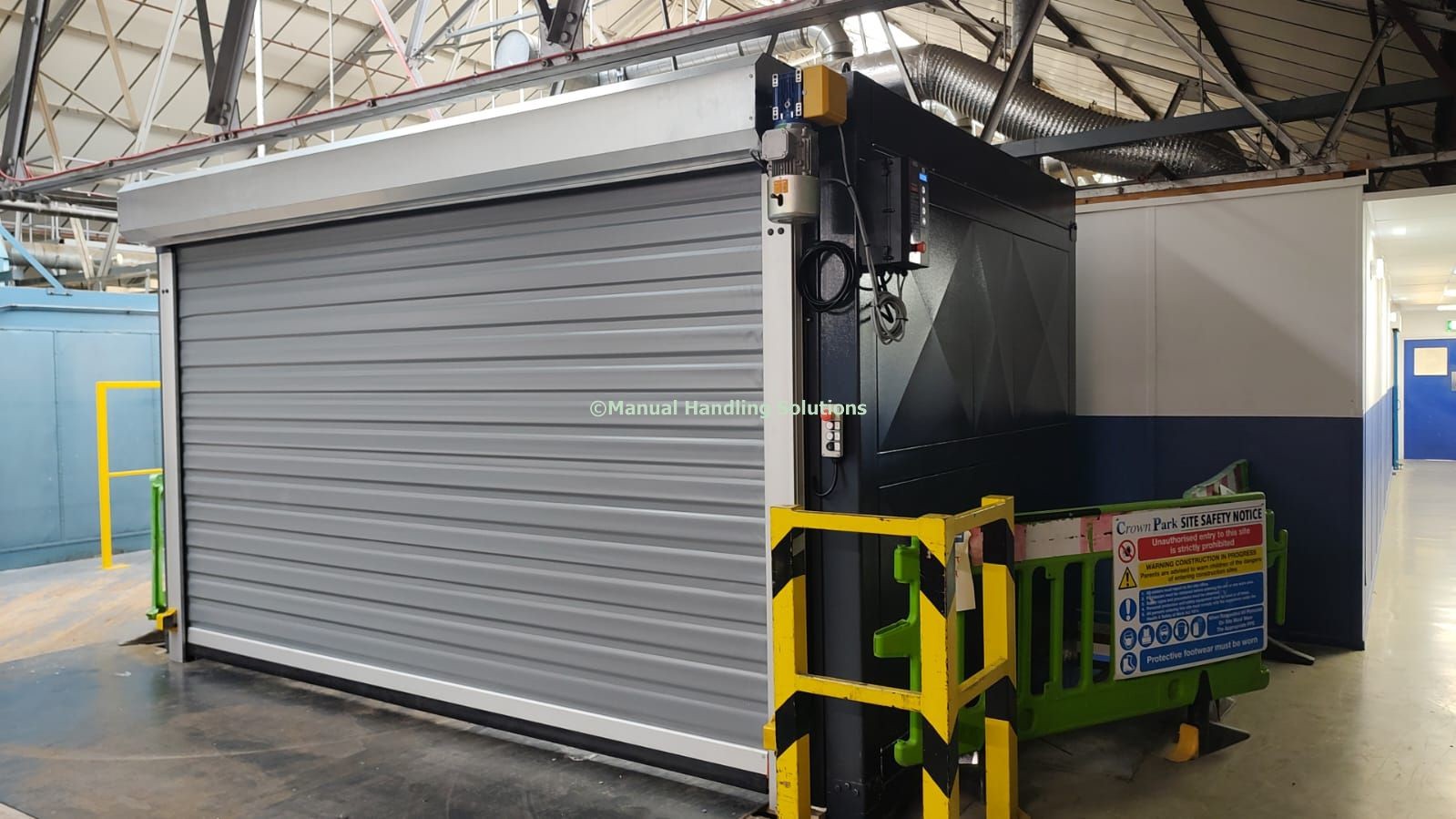

Mezzanine Floor Goods Lift Isle of Wight a self-supporting lift structure manufactured from 150mm x 150mm box section steel with clad infilled panels Grey RAL 7024. Goods Lift fitted with 2000mm high hybrid roller shutter doors at both entrances, and these are fitted with interlock system to ensure that the platform loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates at any level are not fully closed. The overall height of the upper-level structure is 2600mm.

Mezzanine Goods Lift platform fitted with shoot bolts to stabilise the platform and remove any hydraulic ‘bounce’ when fully loaded at the top floor. “Press to Go” one touch controls with emergency stop at both entrances and levels fitted as standard.

To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 15Kw control voltage 24-volt IP55.

General Specification

Emergency lowering system when power is cut off.
Prewired control box included magnetic starter and overload fuse.
Upper-level travel limit switch and overload relief valve
Hydraulic cylinders feature emergency velocity fuse if line breaks.
Control points are fitted to both ground and upper floor levels.
The hydraulic power pack and electrical system housed separately at ground level.
The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
Goods Liftis CE plated and built-in compliance with the Machinery Directive 2006/42/EC
Inverter
Installation; Isle of Wight

picture photo siteby VisualLightBox.com v6.1

Warehouses often require flexible and cost-effective solutions to move goods and materials from ground floors to raised storage platforms and mezzanine floors. The range of mezzanine goods lifts from Manual Handling Solutions provides the ideal solution to your vertical movement needs. Widely used for use in all types of buildings such as: Stores, Hotels, Warehouses, Factories, Supermarkets, Shopping areas, Construction, Medical, Distribution Facilities, Aerospace and Hospitality. Mezzanine goods lifts facilitate the increased use of vertical space in storage areas and make it easy to safely and quickly transfer goods from first floor level to a raised floor or multi floor landings. Mezzanine Goods Lifts can also be installed along the edge of the raised floor or in a specially cut aperture within in the mezzanine.

Manual Handling Solutions continues to build its reputation by delivering on time and on budget and by paying attention to every detail. If you have any questions about our mezzanine goods lifts or would like assistance with finalising your goods lift design, MHS are available to answer any queries you may have. We are happy to talk you through our diverse product range of bespoke mezzanine goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.

Mezzanine Floor Goods Lifts covering; Isle of Wight, Salisbury, Petersfield, Southampton, Portsmouth, Gosport, Bournemouth, Hythe, Fareham, Eastleigh, Winchester.
