Mezzanine Floor Goods Lift Ringwood, Hampshire

Mezzanine Floor Goods Lift Ringwood, Hampshire

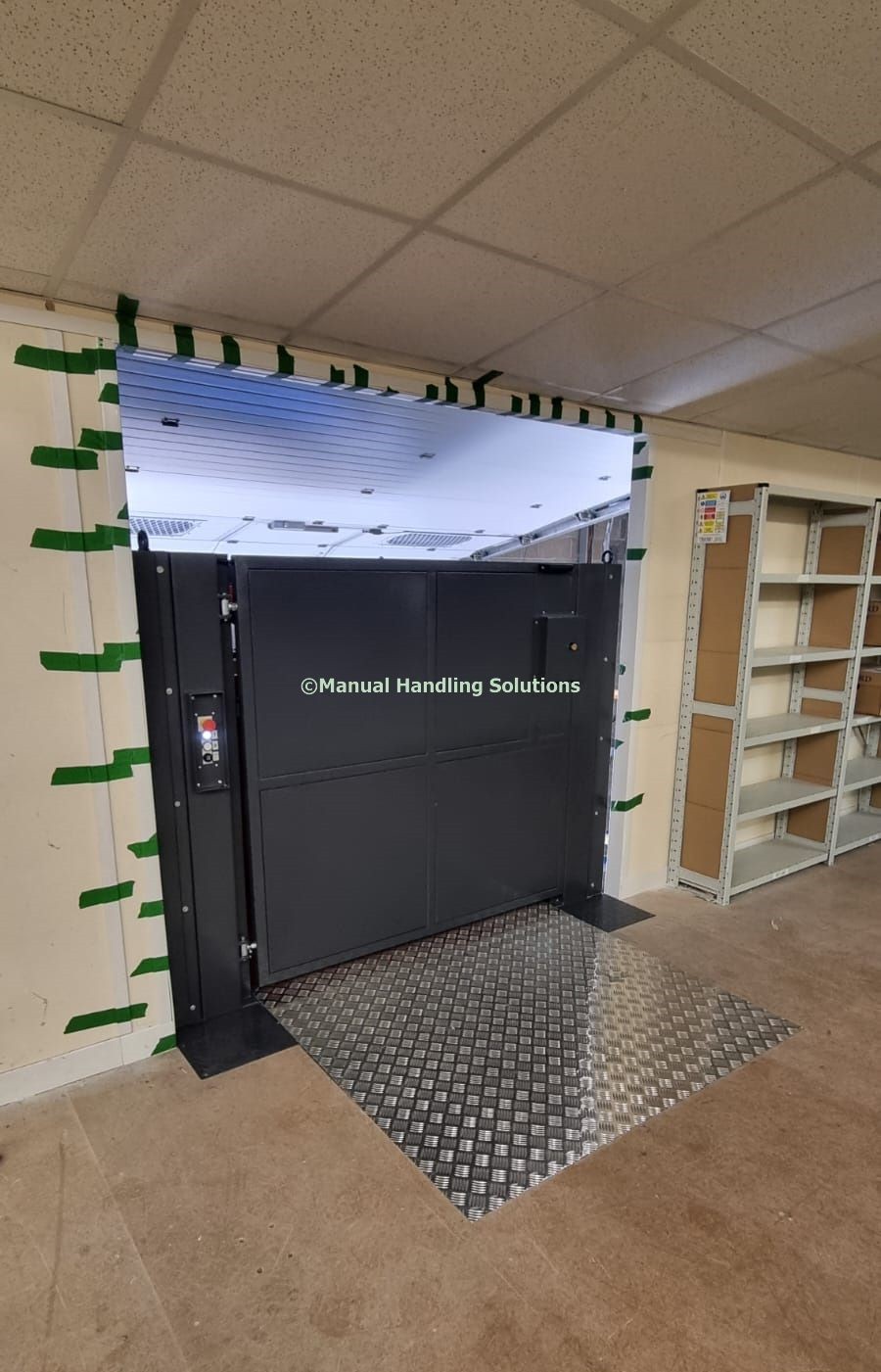

Medium duty 500kg 2 stop single column hydraulic mezzanine floor Goods only Lift 90° loading installed Headlands Business Park, Ringwood, Hampshire BH24 3PB. Mezzanine Floor Goods Lift with finished floor level 3213mm and a platform size 1300mm x 1300mm fitted with 1100mm high infilled panels on the non-loading sides and a single opening interlocked gate finished in Traffic Red RAL 3001. Lift is recessed into a pit for a smooth transition into the lift, pit formed by others.

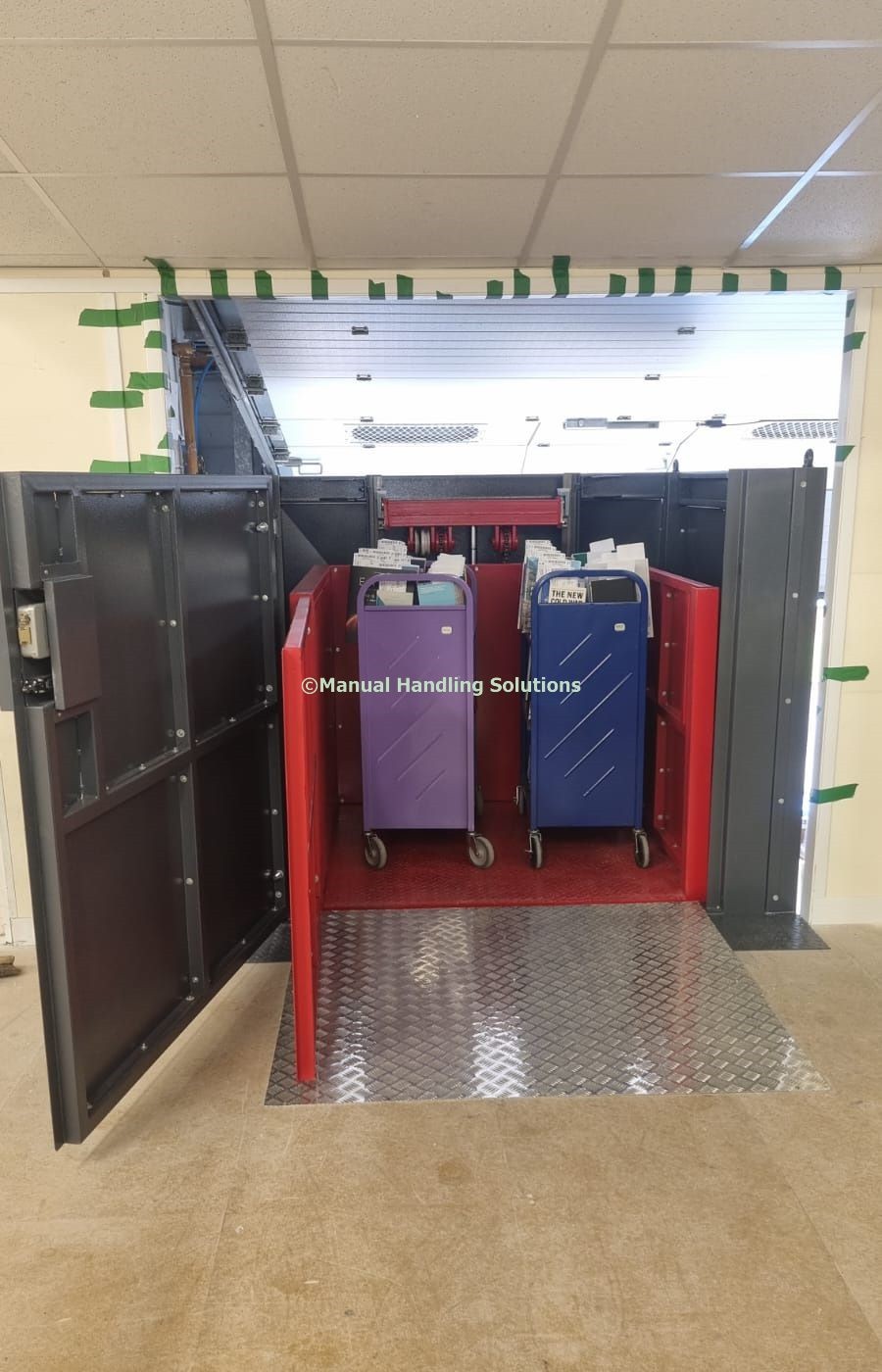

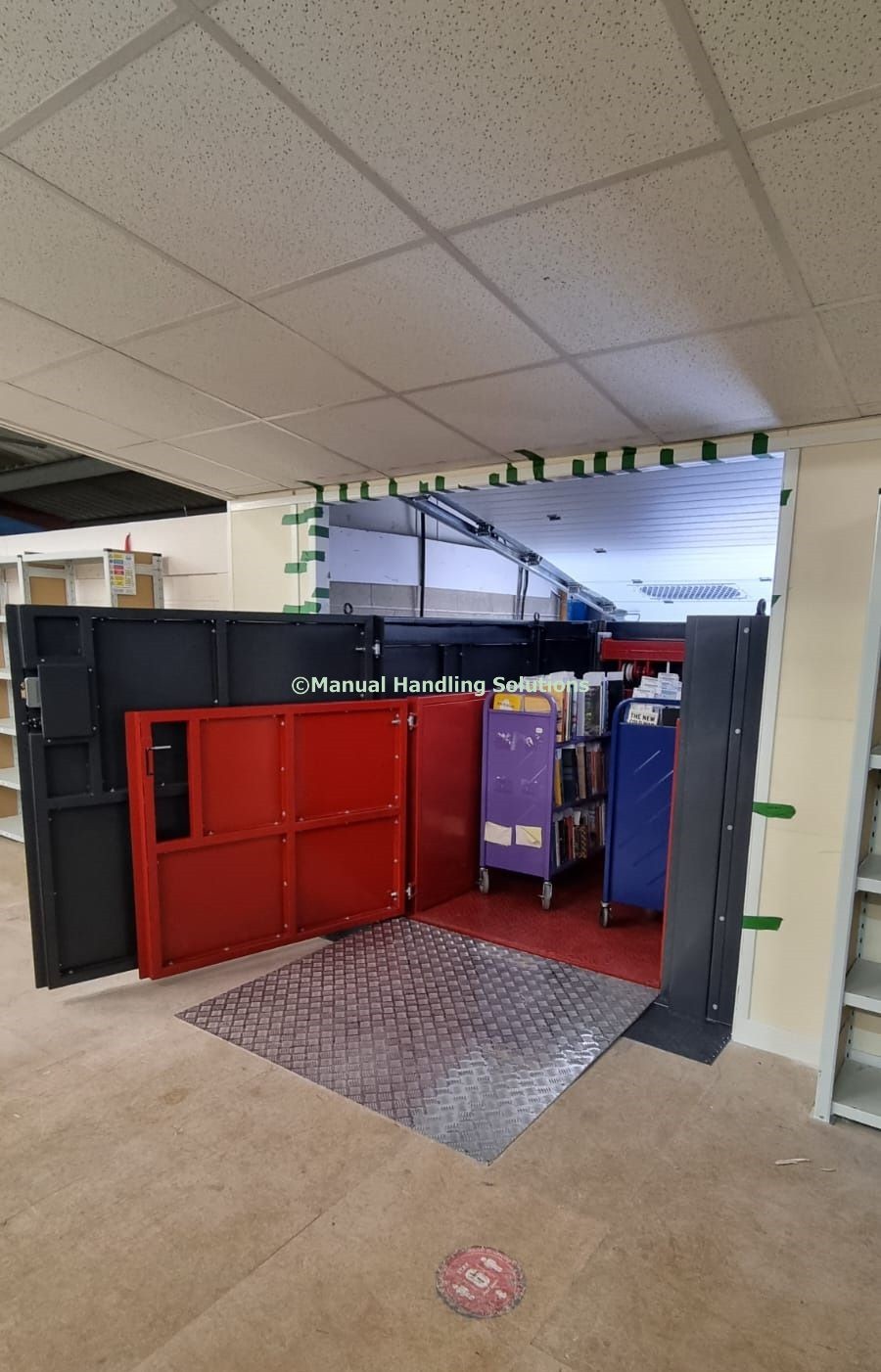

Mezz Goods Lift Ringwood a freestanding self-supporting lift structure manufactured from 120mm x 120mm box section steel with clad infilled panels Grey RAL 7024. Lift fitted at lower level with 2000mm high single loading gate cladded with a Perspex viewing panel, at the upper level due to restricted access is a 1500mm high enclosure and single-entry gate fitted with interlock system to ensure that the loading gate can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gate on any level is not fully closed. “Press to Go” one touch controls with emergency stop at both levels fitted as standard.

To prevent damage from pallet trucks and FLT the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 3Kw control voltage 24-volt IP55.

General Specification

Emergency lowering system when power is cut off.
Pre-wired control box included magnetic starter and overload fuse.
Upper-level travel limit switch and overload relief valve
Hydraulic cylinders feature emergency velocity fuse if line breaks.
Control points are fitted to both ground and upper floor levels.
The hydraulic power pack and electrical system housed separately at ground level.
The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
CE plated and built-in compliance with the Machinery Directive 2006/42/EC.
Installation; Headlands Business Park, Ringwood, Hampshire BH24 3PB

Bespoke Goods Lifts Manual Handling Solutions

picture photo siteby VisualLightBox.com v6.1

Manual Handling Solutions – Goods Lifts offer bespoke custom designed materials handling and lifting equipment. We provide some of the most advanced handling equipment available from standard products to a bespoke solution. Our range of lifting equipment and materials handling products are by far the most sophisticated and technically advanced and manufactured to the highest standard. As a Handling Solutions provider our goal is to work closely with our customers and bring the most technically advanced handling products – solutions to market.

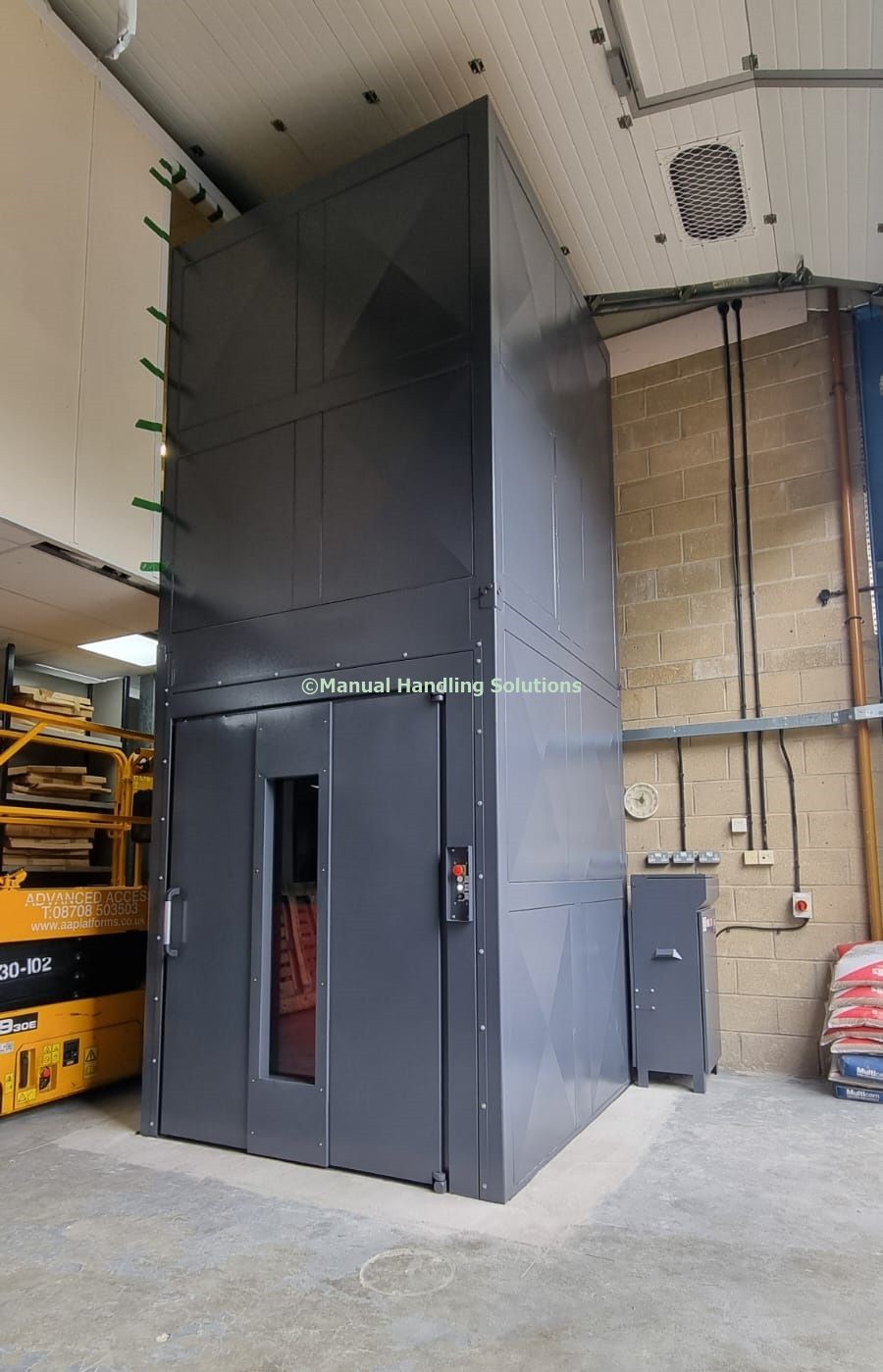

The range of mezzanine floor lifts from Manual Handling Solutions provides the ideal solution to your vertical movement needs. Widely used in distribution facilities, warehouses, car dealerships, retail storage areas, museums, theatres, hotels, and many other environments, mezzanine lifts facilitate the increased use of vertical space in storage areas and make it easy to safely and quickly transfer goods from first floor level to a raised floor or multi floor landings. Mezz Goods lifts can also be installed along the edge of the raised floor or in a specially cut aperture within in the mezzanine.

A Mezzanine Goods Lift is a cost-effective solution to transport bulky or heavy items. Health and Safety obligations dictate that you must provide a safe and injury free workplace – a Goods Hoist can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. Need something tailored to your specification then our custom-made lift services can help contact Manual Handling Solutions to discuss your exact requirements. Trade enquires welcome.
