Mezzanine Floor Goods Lift Shirebrook Mansfield
 |

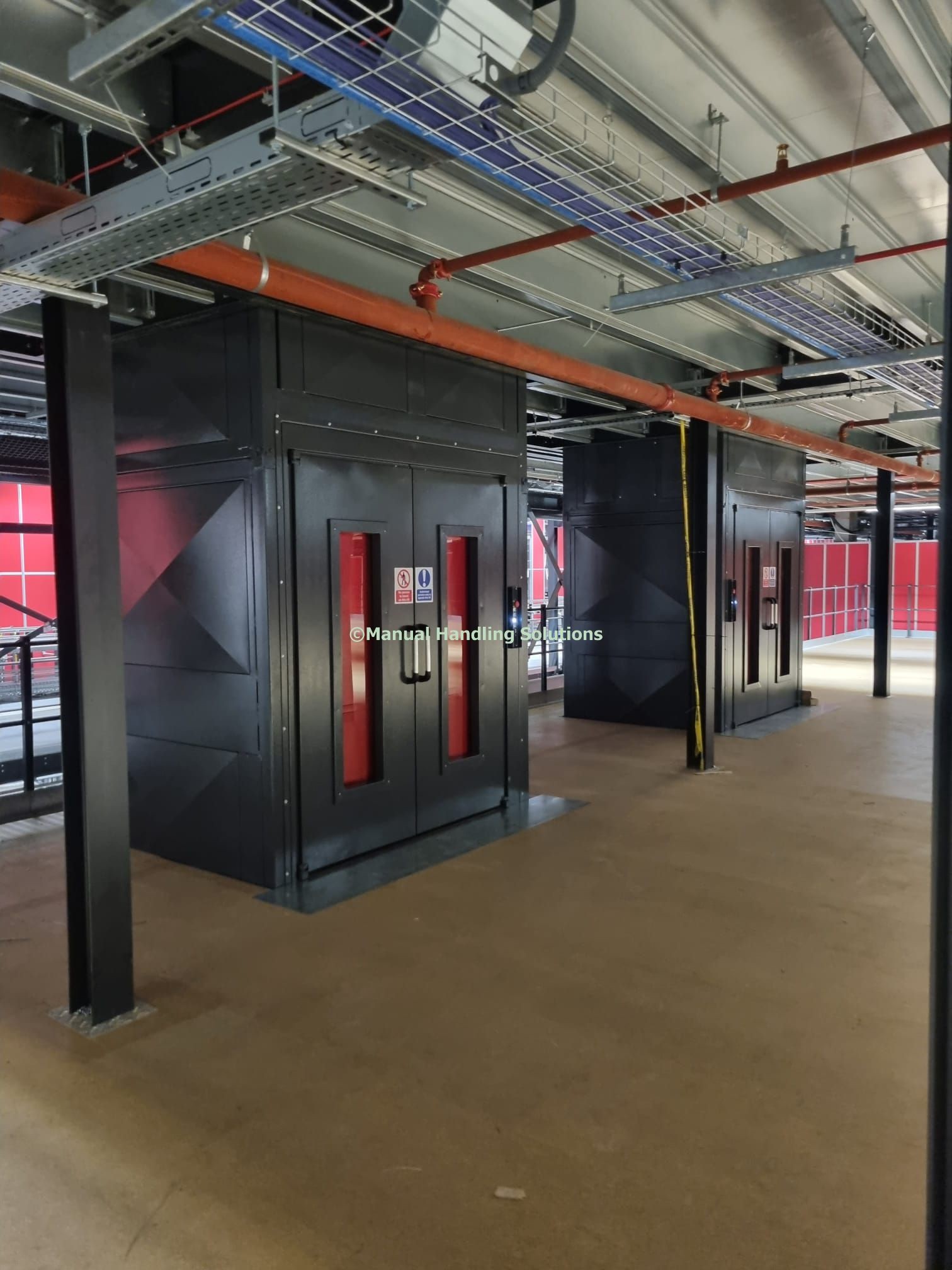

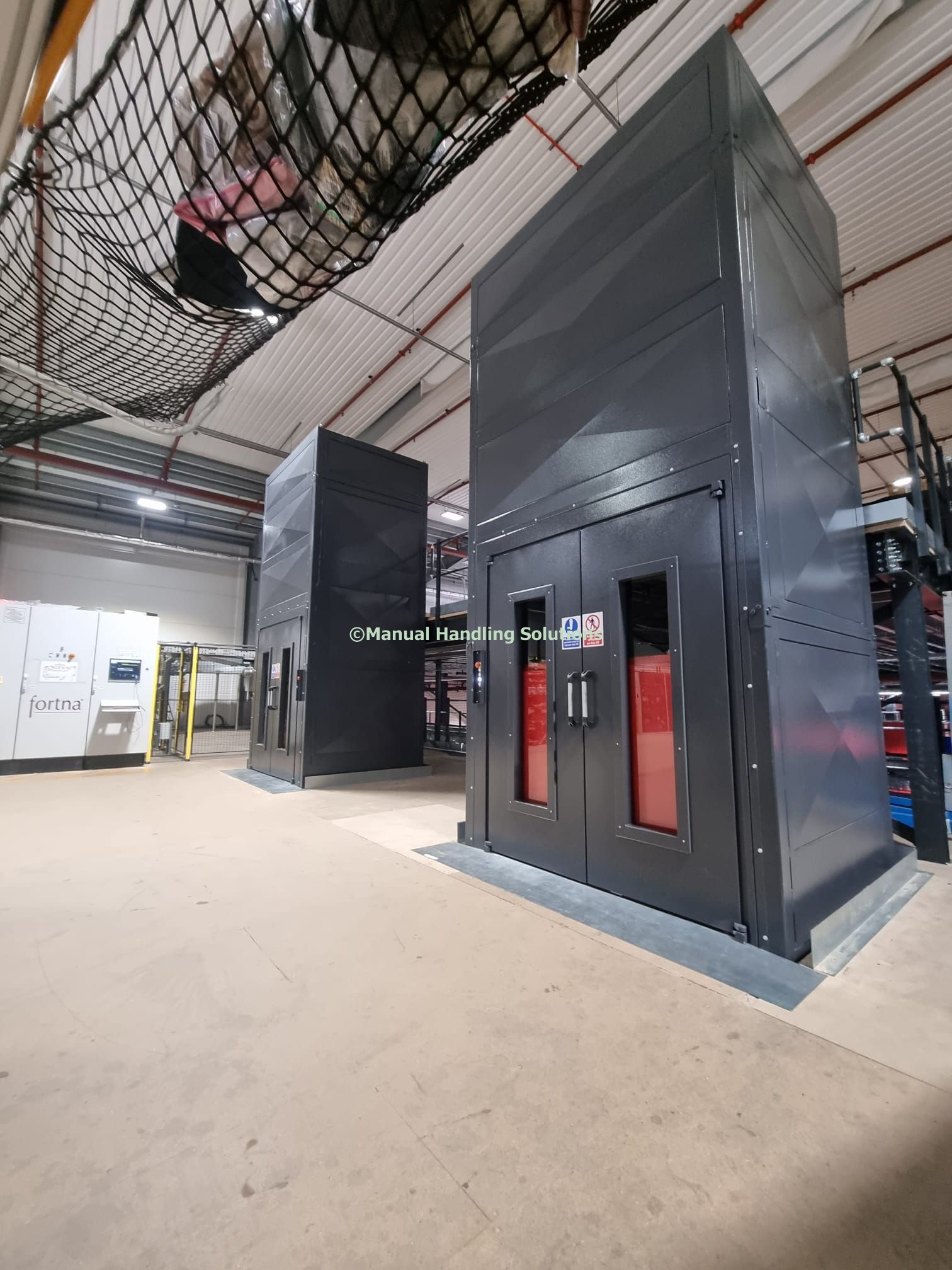

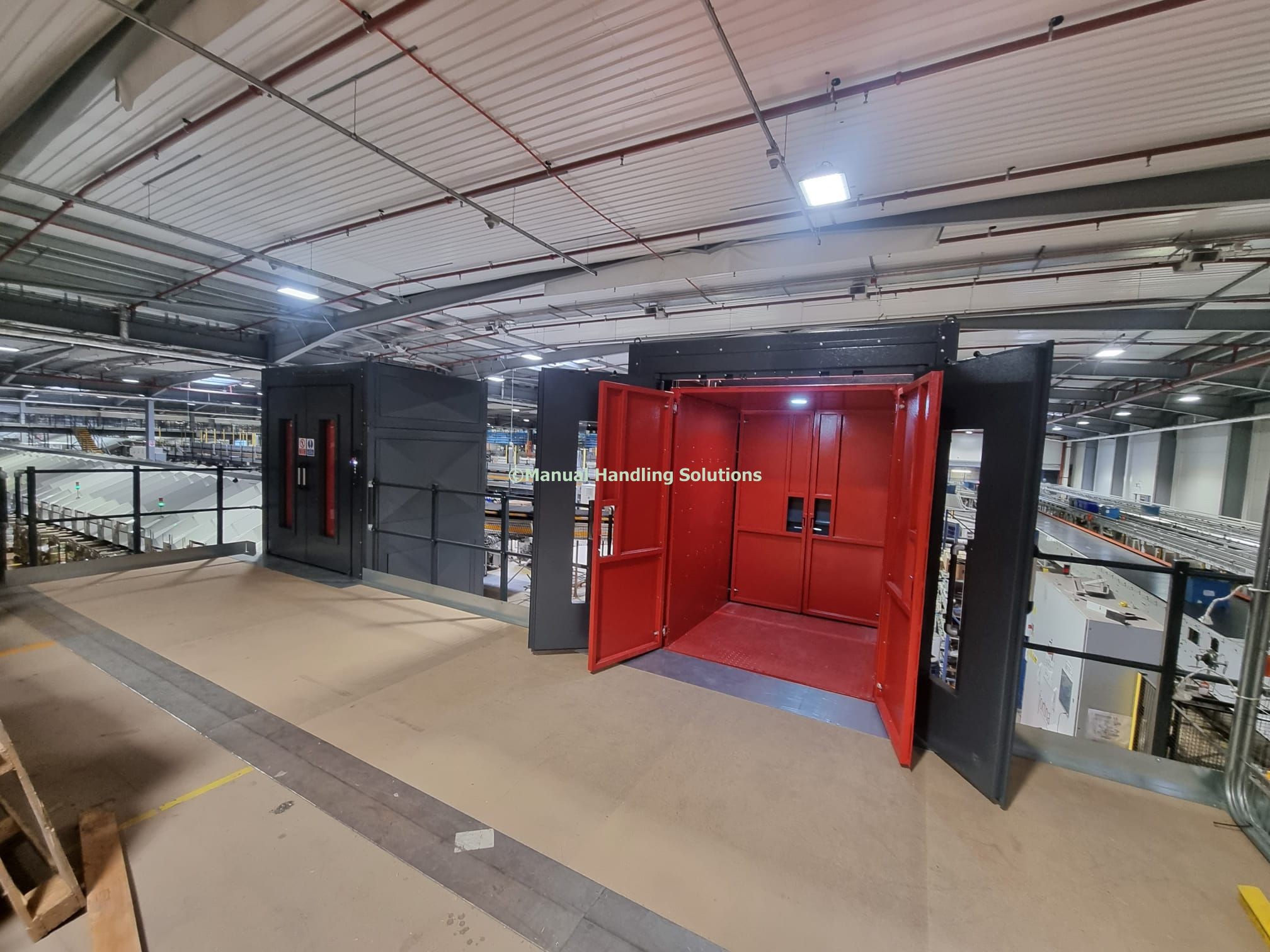

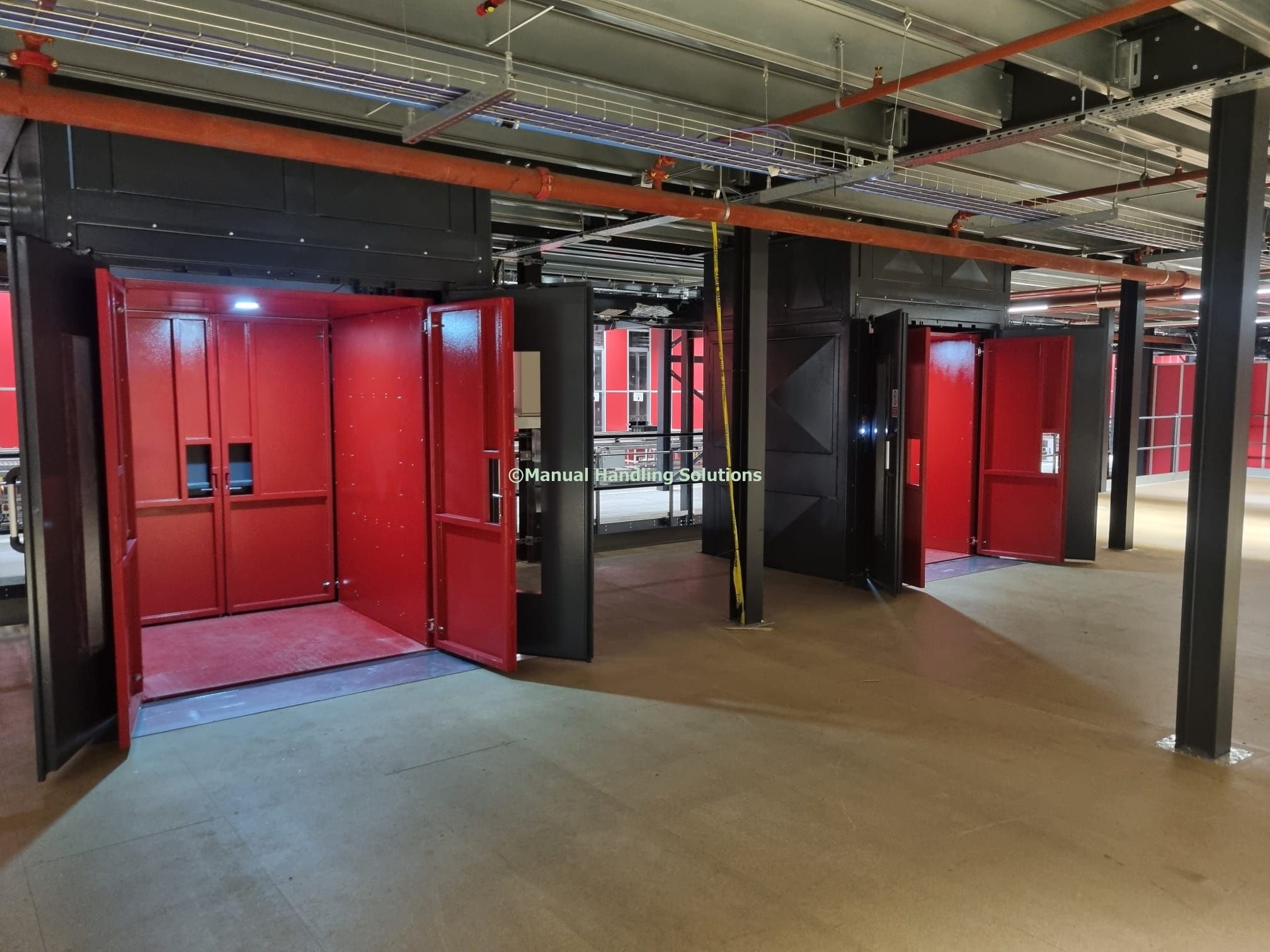

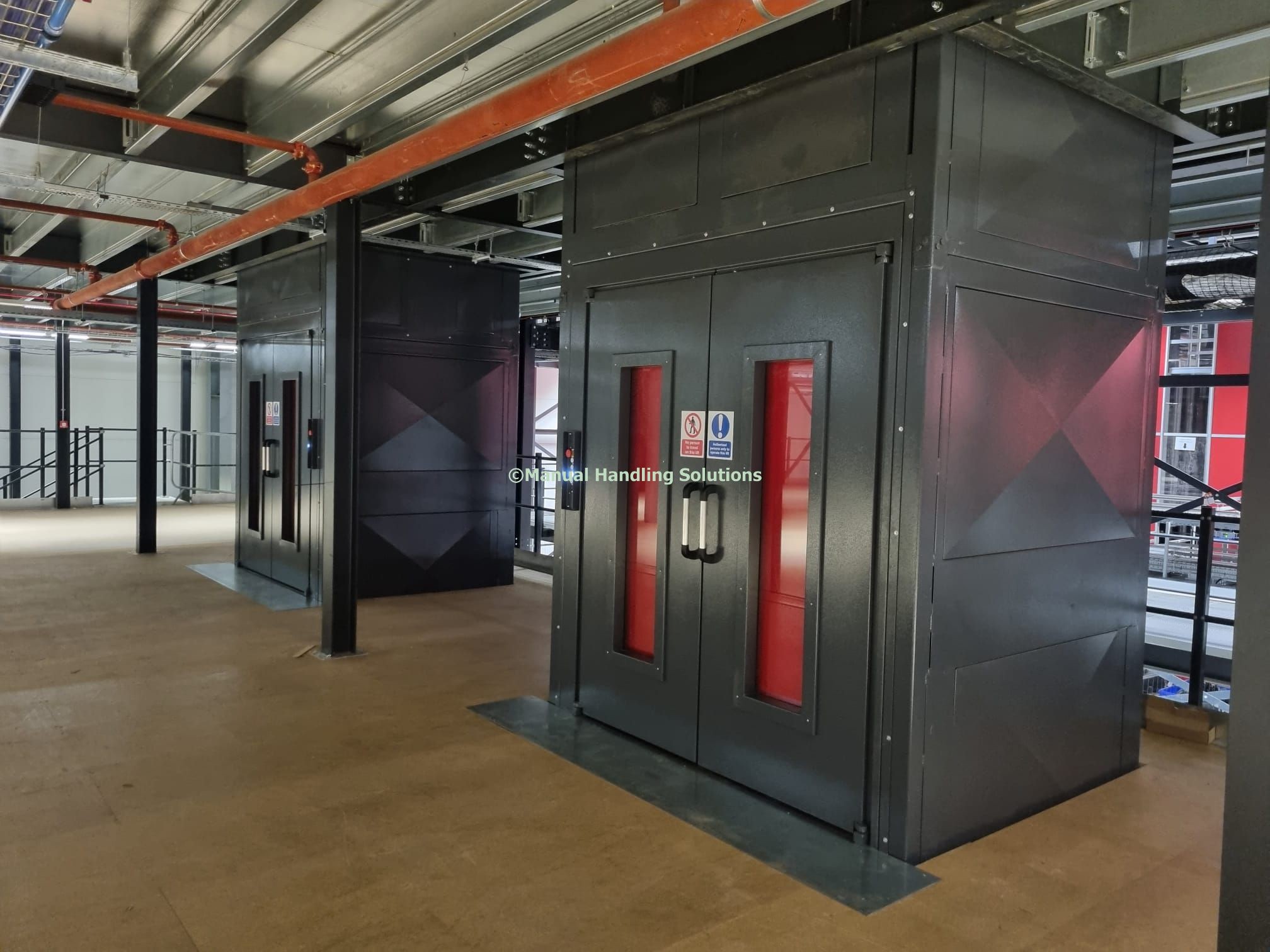

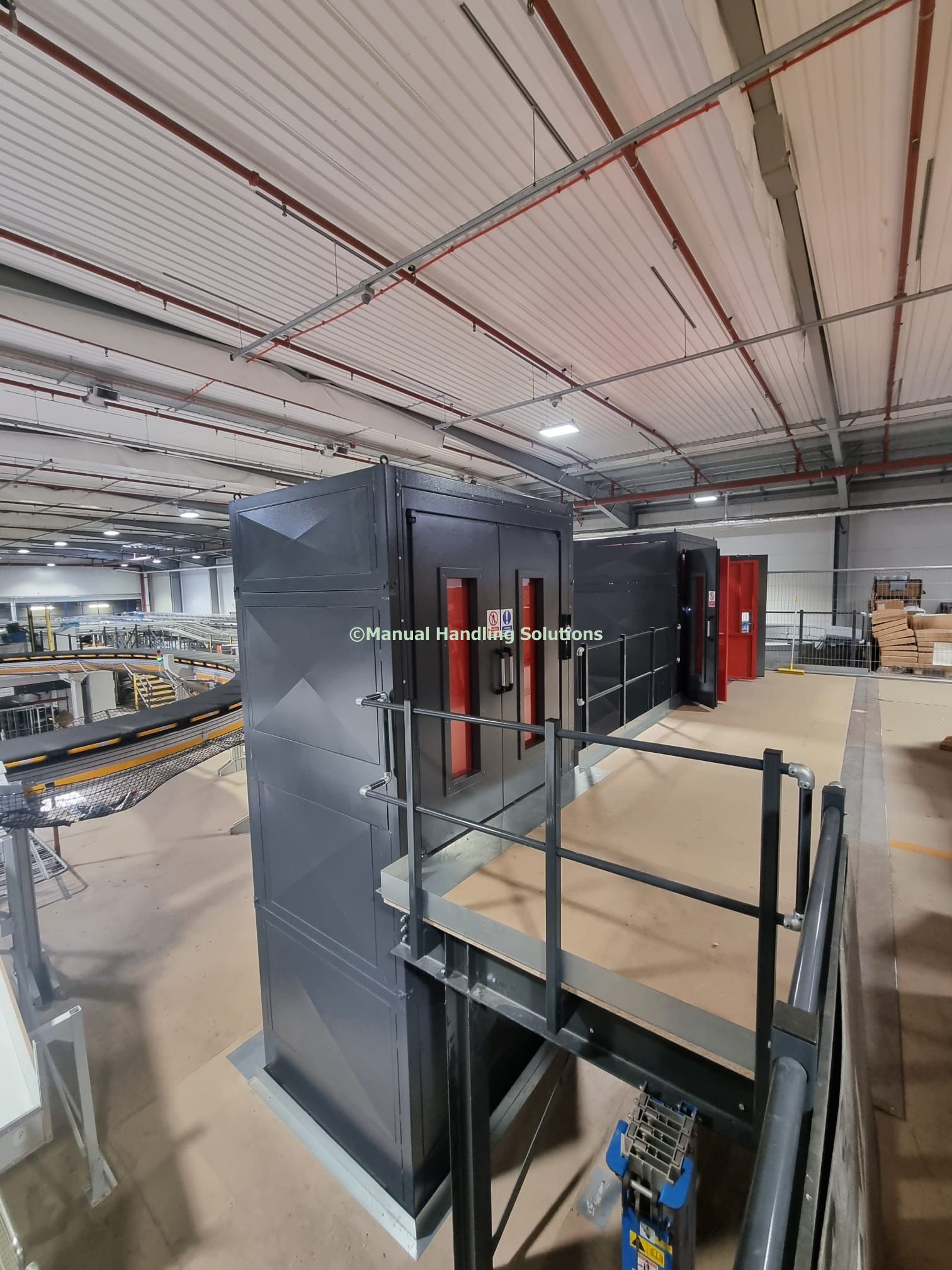

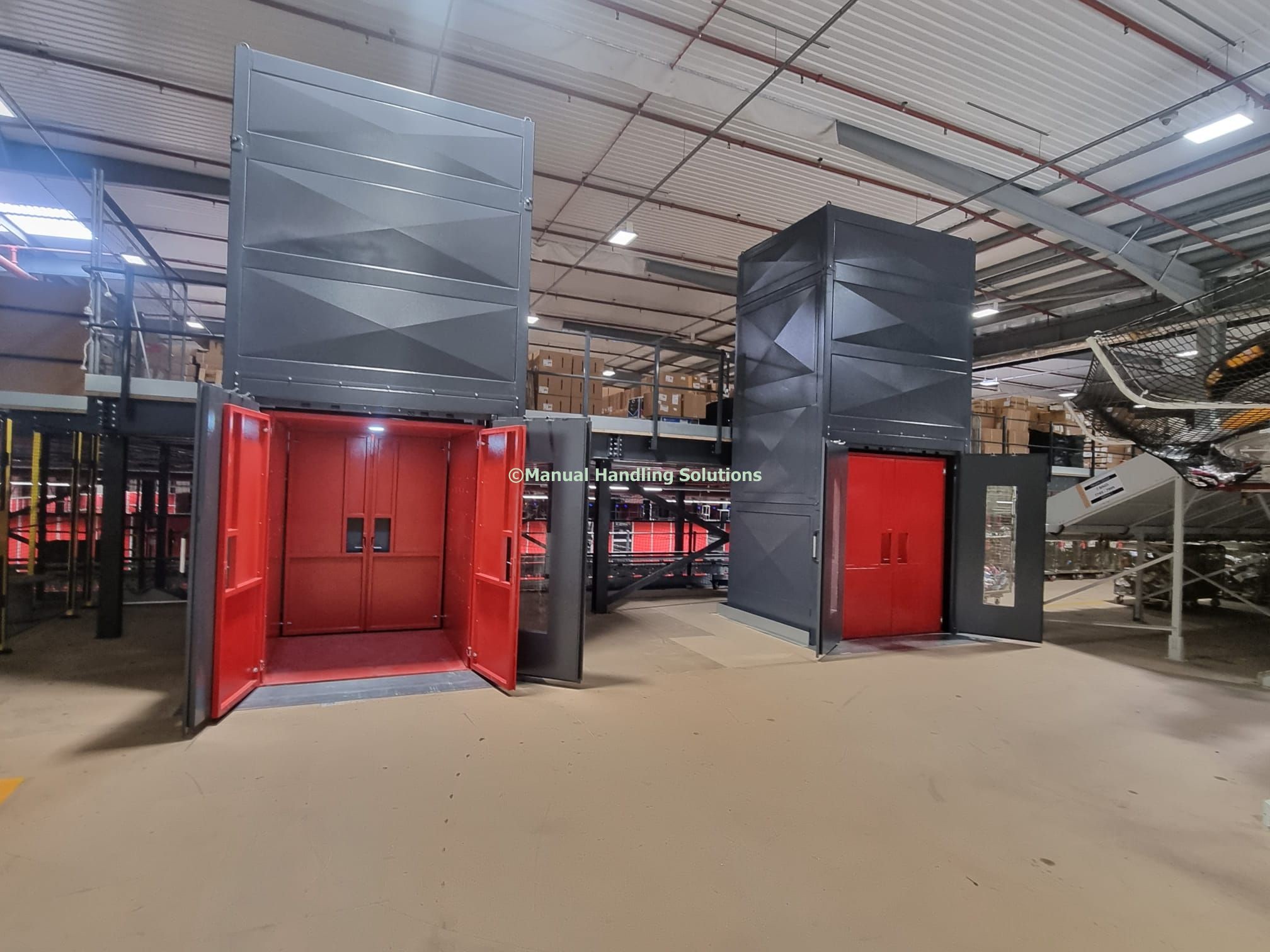

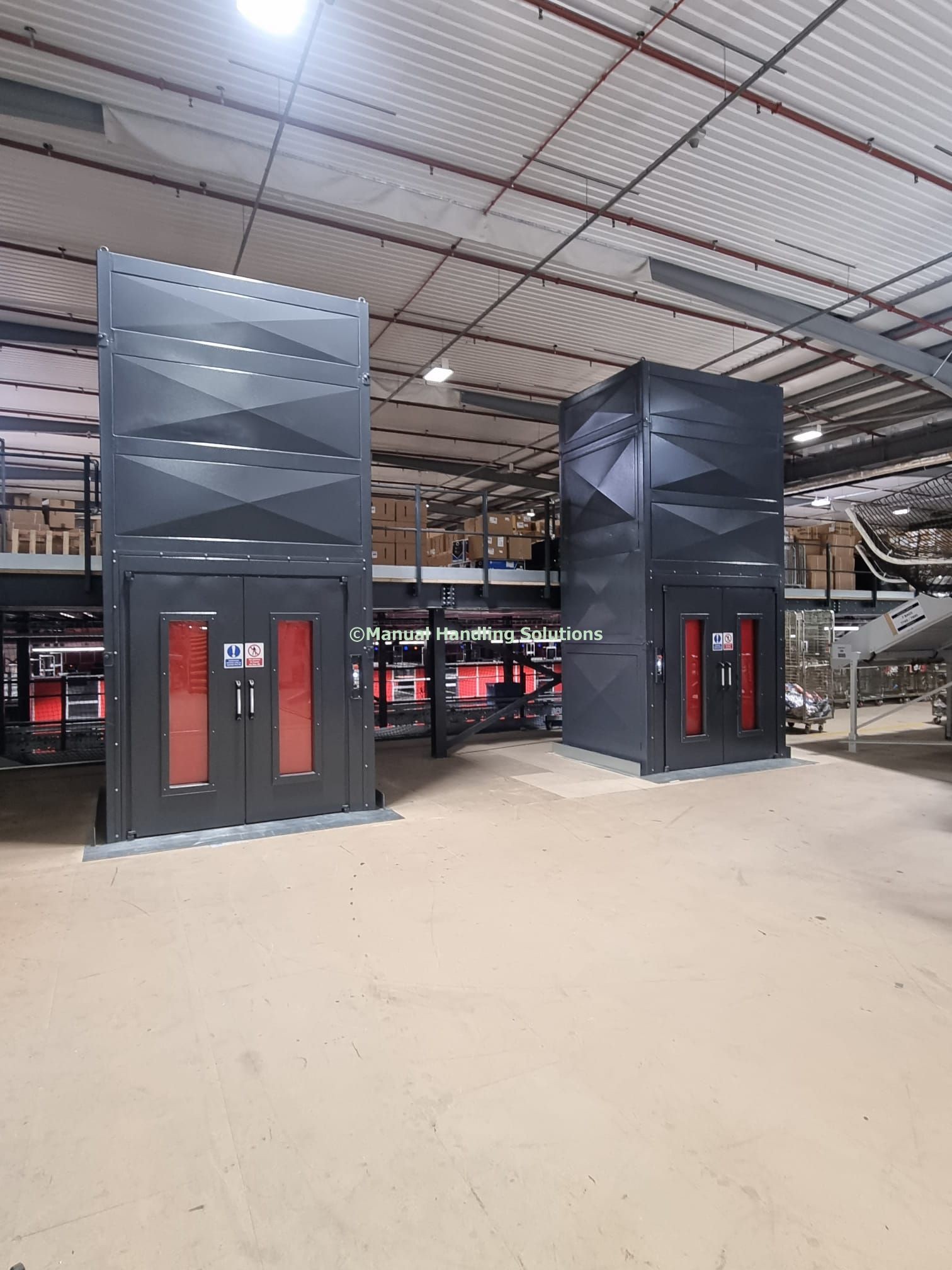

Mezzanine Floor Goods Lift Shirebrook Mansfield Bespoke 4 stop single column hydraulic Mezzanine Goods Lifts 1000kg installed Shirebrook, Mansfield with a finished floor level 8211 metres. Goods Lift has a platform size is 1500mm x 1500mm fitted with a fully enclosed cabin 2000mm high with LED light. Lift is same side loading G-1-2-3 and through car at upper level. Mezzanine Floor Goods Lift is a self-supporting structure manufactured from 120mm x 120mm box section steel with clad infilled panels. Goods lift fitted with 2100mm high double loading doors cladded with Perspex viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper-level structure is 2390mm. Mezzanine Floor Goods Lift platform fitted with shoot bolts to stabilise the platform and remove any hydraulic ‘bounce’ when fully loaded at each floor. “Press to Go” one touch controls with emergency stop at each level fitted as standard. Goods Lift installed in a recessed 130mm pit by others. |
To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L800mm x H1300mm. Electrics 3 phase, 400v, 5.5Kw control voltage 24-volt IP55.
General Specification
- Emergency lowering system when power is cut off.
- Prewired control box included magnetic starter and overload fuse.
- Upper-level travel limit switch and overload relief valve
- Hydraulic cylinders feature emergency velocity fuse if line breaks.
- Control points are fitted to both ground and upper floor levels.
- The hydraulic power pack and electrical system housed separately at ground level.
- The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
- CE plated and built-in compliance with the Machinery Directive2006/42/EC
- Lifts loaded and unloaded with hand pallet trucks.
- Installation; 2 x Lifts – Shirebrook, Mansfield
Manual Handling Solutions offer a versatile range of hydraulic goods lifts, they have been designed and manufactured to offer simple, economical, and reliable solution to heavy lifting problems for a variety of applications, including warehouses, industries, supermarkets, restaurants, hotels, hospitals, private residences and office buildings.
A goods lift from Manual Handling Solutions is a cost-effective solution to transport bulky or heavy items in your warehouse. Health and Safety obligations dictate that you must provide a safe and injury free workplace – a Goods Lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. Need something tailored to your specification then our custom-made lift services can help contact Manual Handling Solutions to discuss your exact requirements.
If you have any questions about our goods lifts, or would like assistance with finalising your goods lift design, Manual Handling Solutions are available to answer any queries you may have. We’re happy to talk you through our diverse range of bespoke goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.
Mezzanine Floor Goods Lifts covering; Shirebrook, Mansfield, Sutton-in-Ashfield, Chesterfield, Sheffield, Newark-on-Trent, Nottingham, Worksop.
