Mezzanine Floor Goods Lift Tring Hertfordshire

Mezzanine Floor Goods Lift Tring Hertfordshire

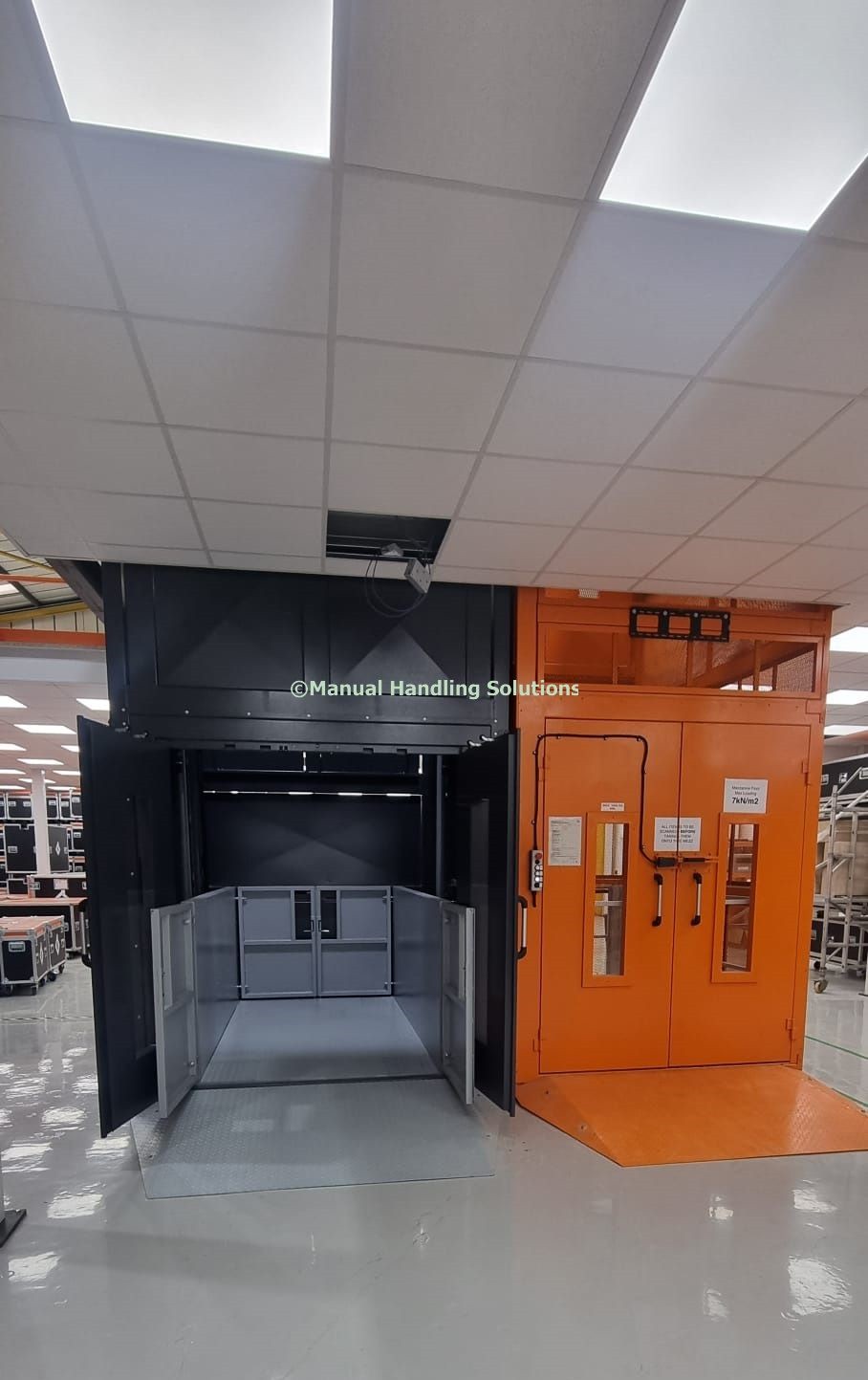

Hydraulic 2 stop double column 1000kg Mezzanine Floor Goods Lift installed Unit 4 Tring Industrial Estate, Icknield Way, Tring, HP23 4JX.

Mezzanine Goods Lift with FFL 3390mm and platform size 1500mm wide x 2800mm long fitted with 1100mm high infilled panels on the non-loading sides and 1100mm high twin opening interlocked gates finished in RAL 7040. Single entry at lower level and through car at upper level.

Goods Lift Tring is a freestanding self-supporting lift structure manufactured from 120mm x 120mm box section steel with cladded infilled panels Grey RAL 7024.

Mezzanine Goods lift fitted with 2000mm high double loading gates cladded with Perspex viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper-level structure is 2290mm.

Goods Hoist Hertfordshire fitted with “Press to Go” one touch controls with emergency stop at both levels fitted as standard. At the lower level a fixed ramp 1250mm long x 1580mm wide will be provided to assist loading on to the 120mm deep platform finished RAL 7040.

To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 5.5Kw control voltage 24-volt IP55.

General Specification

Emergency lowering system when power is cut off.
Prewired control box included magnetic starter and overload fuse.
Upper-level travel limit switch and overload relief valve
Hydraulic cylinders feature emergency velocity fuse if line breaks.
Control points are fitted to both ground and upper floor levels.
The hydraulic power pack and electrical system housed separately at ground level.
The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
CE plated and built-in compliance with the Machinery Directive2006/42/EC
Installation; Unit 4 Tring Industrial Estate, Icknield Way, Tring, Hertfordshire HP23 4JX

picture photo siteby VisualLightBox.com v6.1

Manual Handling Solutions – Goods Lifts offer bespoke custom designed materials handling and lifting equipment. We provide some of the most advanced handling equipment available from standard products to a bespoke solution. Our range of lifting equipment and materials handling products are by far the most sophisticated and technically advanced and manufactured to the highest standard. As a Handling Solutions provider our goal is to work closely with our customers and bring the most technically advanced handling products – solutions to market.

The range of mezzanine goods hoists from Manual Handling Solutions provides the ideal solution to your vertical movement needs. Widely used in distribution facilities, warehouses, car dealerships, retail storage areas, museums, theatres, hotels, and many other environments, mezzanine lifts facilitate the increased use of vertical space in storage areas and make it easy to safely and quickly transfer goods from first floor level to a raised floor or multi floor landings. Mezzanine Goods lifts can also be installed along the edge of the raised floor or in a specially cut aperture within in the mezzanine.

A mezzanine goods lift from MHS is a cost-effective solution to transport bulky or heavy items. Health and Safety obligations dictate that you must provide a safe and injury free workplace – a Goods Lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. Need something tailored to your specification then our custom-made lift services can help contact Manual Handling Solutions to discuss your exact requirements. Trade enquires welcome.

Mezzanine Floor Goods Lift Installations covering; Chesham, Aylesbury, Hemel Hempstead, Stoke Mandeville, Berkhamsted, Amersham, Leighton Buzzard, Luton
