Mezzanine Floor Goods Lifts Dartford

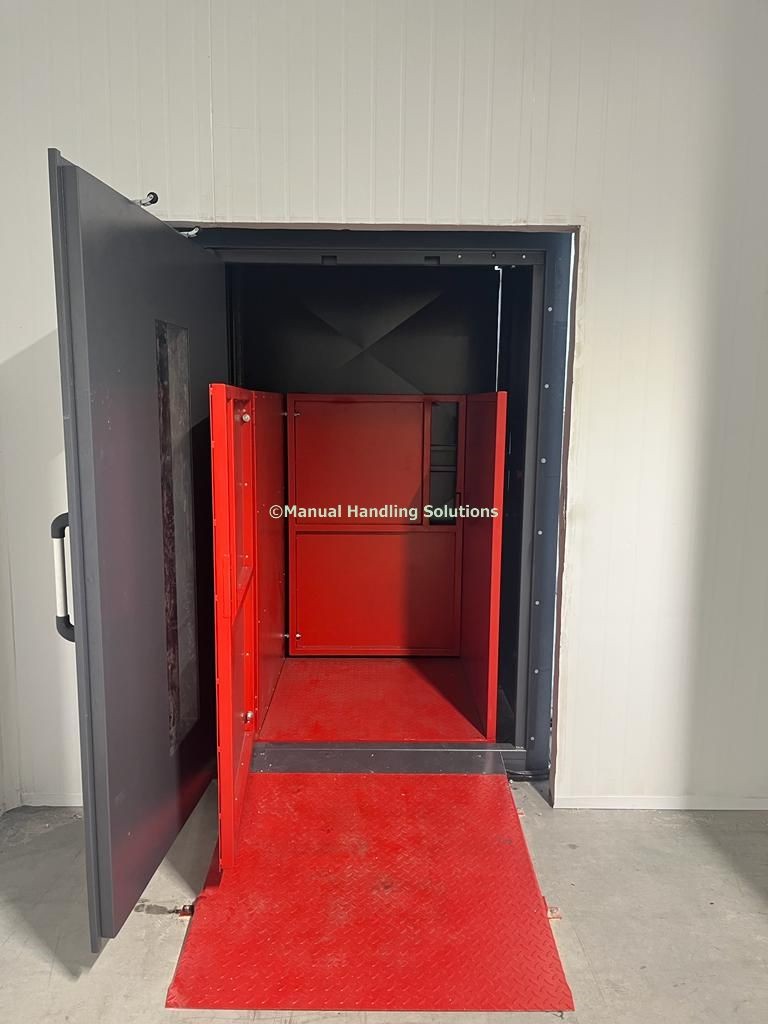

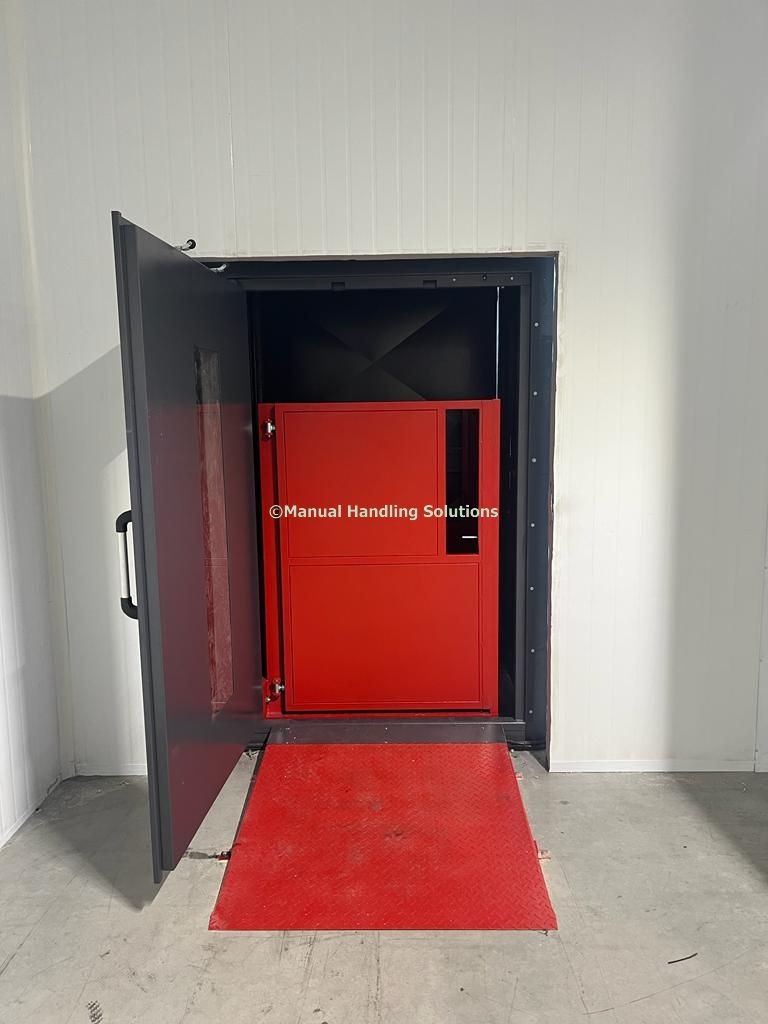

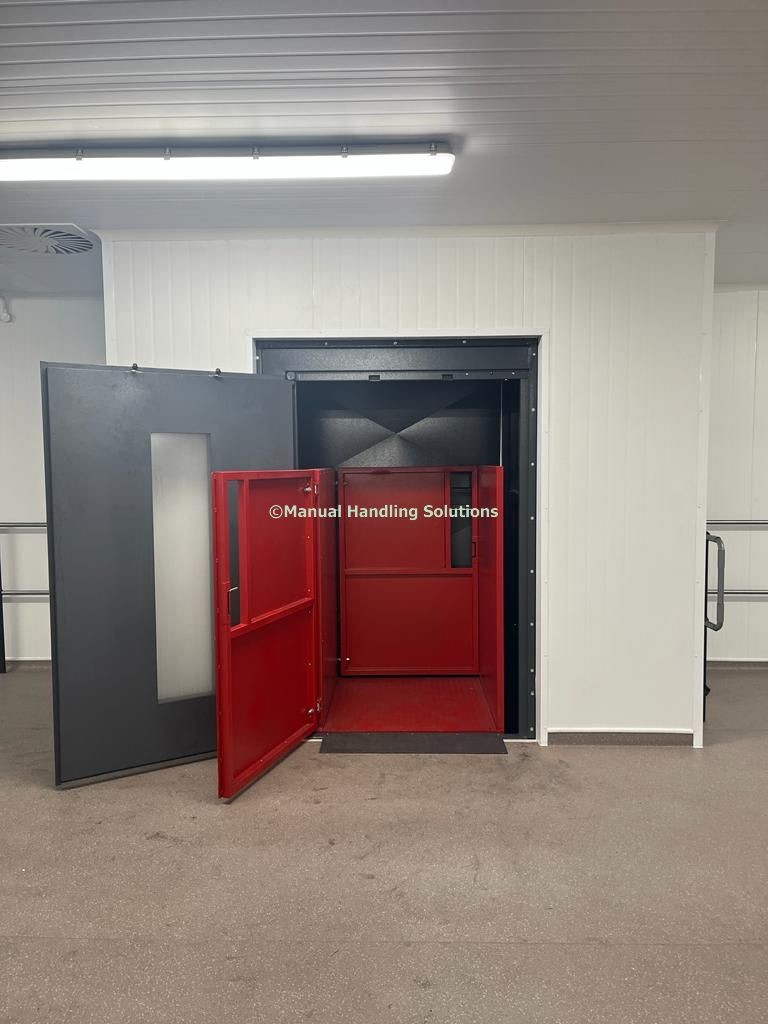

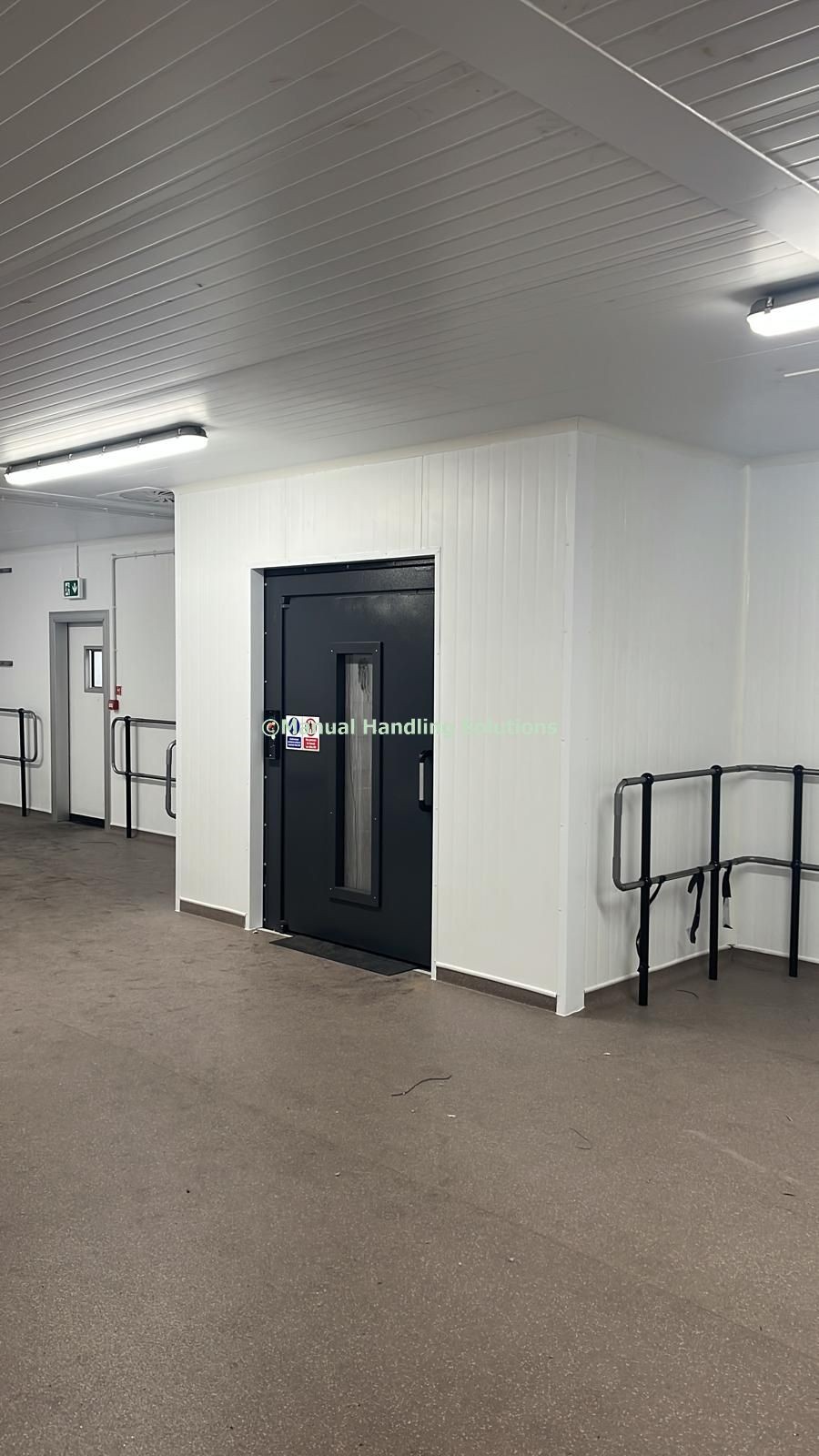

2 stop 300kg same side loading single column hydraulic Mezzanine Floor Goods Lift installed Crossways Commercial Park, Dartford, Kent DA2 6QB with a finished floor level 4688mm and platform size 1000mm x 1000mm fitted with 1500mm high infilled panels on the non-loading sides and single opening interlocked gate 1500mm high finished in Red RAL 3020.

Mezzanine Floor Goods Lifts Dartford is a freestanding self-supporting lift structure manufactured from 100mm x 100mm box section steel with clad infilled panels Grey RAL 7024. Goods Lift fitted with 2000mm high single loading gates cladded with Perspex viewing panel at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gate on any level is not fully closed. The overall height of the upper-level structure is 2290mm.

At the lower level, a fixed ramp 1250mm long x 1080mm wide will be provided to assist loading on to the 120mm deep platform finished Red RAL 3020. To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 4Kw control voltage 24-volt IP55.

General Specification

Emergency lowering system when power is cut off.
Prewired control box included magnetic starter and overload fuse.
Upper-level travel limit switch and overload relief valve
Hydraulic cylinders feature emergency velocity fuse if line breaks.
Control points are fitted to both ground and upper floor levels.
The hydraulic power pack and electrical system housed separately at ground level.
The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
CE plated and built-in compliance with the Machinery Directive2006/42/EC
Installation; Clipper Boulevard, Crossways Commercial Park, Dartford, Kent DA2 6QB

picture photo siteby VisualLightBox.com v6.1

Manual Handling Solutions – Goods Lifts offer bespoke custom designed materials handling and lifting equipment. We provide some of the most advanced handling equipment available from standard products to a bespoke solution. Our range of lifting equipment and materials handling products are by far the most sophisticated and technically advanced and manufactured to the highest standard. As a Handling Solutions provider our goal is to work closely with our customers and bring the most technically advanced handling products – solutions to market.

If you require an economical solution to lift pallets, trolleys, products from ground floor to a secondary mezzanine level or multi-level flooring consider a free standing / self-supporting mezzanine goods lift. Manual Handling Solutions offer you a one-stop shop for industrial mezzanine goods lifts ideal for factory, warehousing, manufacturing plant, retail deliveries, supermarkets, restaurants, pubs, museums, theatres, and hotels. We offer full project management in design, manufacture, installation, and service.

If you have any questions about our mezzanine goods lifts or would like assistance with finalising your goods lift design, Manual Handling Solutions are available to answer any queries you may have. We are happy to talk you through our diverse product range of bespoke goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.

Alternatively browse through our extensive range online for goods lifts, material lifts, pallet lifts and mezzanine goods lifts.

Trade enquires welcome.

Mezzanine Floor Goods Lifts covering; Purfleet, Lakeside, Tilbury, Bexley, Swanley, Grays, Rainham, Erith, Greenhithe, Dagenham, Barking, Ilford, Romford.
