Mezzanine Goods Lift and 1 Trained Attendant

Mezzanine Goods Lift and 1 Trained Attendant

Through car 2500kg 2 stop double column Mezzanine Goods Lift with 1 Trained Attendant installed London Road, Brentwood Commercial Park, West Horndon, Brentwood Essex CM13 3LR with a finished floor level 4000mm and platform size W2300mm x D2300mm.

On the none loading sides the platform is fitted with a 2-sided 2000mm high enclosed cabin, LED lights and internal controls for the attendant. On the loading entrances the lift is fitted with full height light beam curtain, should the light curtain be breached then the lift will automatically stop.

Platform and cabin finished Orange RAL 2017. The attendant has direct access to operating controls, allowing them to select floors, manage the lift, and respond to situations within the car.

Goods Attendant Lift is self-supporting with the structure manufactured from 100mm x 100mm box section steel with clad infilled panels RAL 7024, lift fitted with 2000mm high twin loading doors cladded with Perspex viewing panels at both entrances and these are fitted with safety interlock system to ensure that the light curtain can only operate in conjunction with the lift controls.

Attendant Goods Lift platform fitted with shoot bolts to stabilise the platform and remove any hydraulic ‘bounce’ when fully loaded at the top floor. “Press to Go” one touch controls with emergency stop at all entrances and levels fitted as standard. Goods lift supplied with ramp 120mm x 2350mm x 1250mm. The overall height of the upper-level structure is 2290mm.

To prevent tampering the power pack and hydraulic system is in enclosed in a lockable steel cabinet and housed within the building size D500mm x L500mm x H1300mm. Electrics 3-phase, 400v, 11kW control voltage 24-volt IP55.

General Specification

MAN on BOARD Cabin on the Platform H:2000 mm
Goods with 1 Trained Attendant
Light beam curtain
Emergency built-in telephone
Emergency lighting
Emergency down batteries (UPS)
Safety and Protective equipment,
Integrated Parachute Brake System
Fire Alarm Input for Automatic Lowering
Industrial buttons
2-year warranty
Colour: RAL 7024 Structure / RAL 2017(Platform and Ramp)
Speed: 0,15 m/sn
11 kw motor 50 Amp
Installation; London Road, Brentwood Commercial Park, West Horndon, Brentwood Essex CM13 3LR

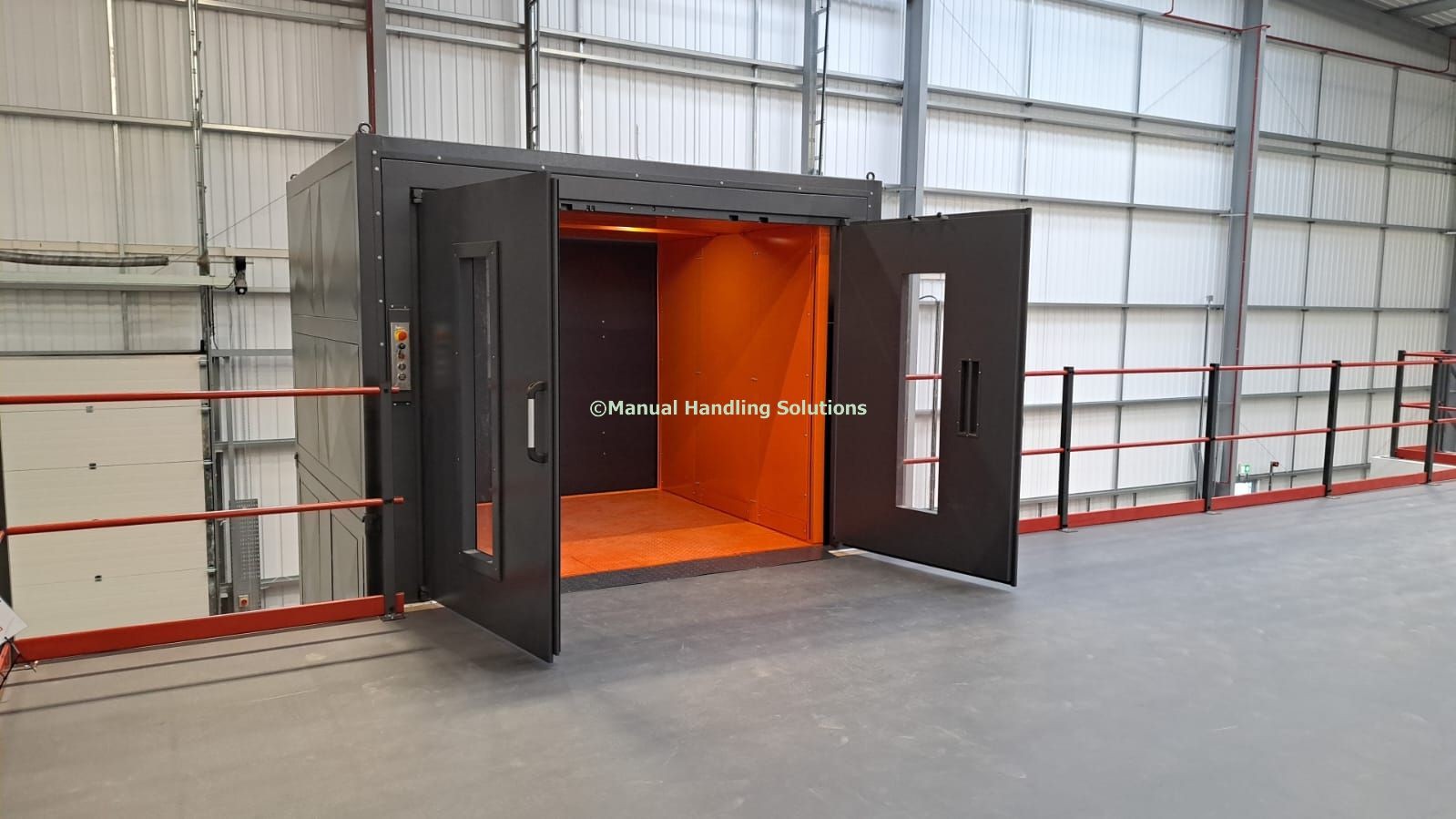

Mezzanine Floor Goods Lift 1 Trained Operator

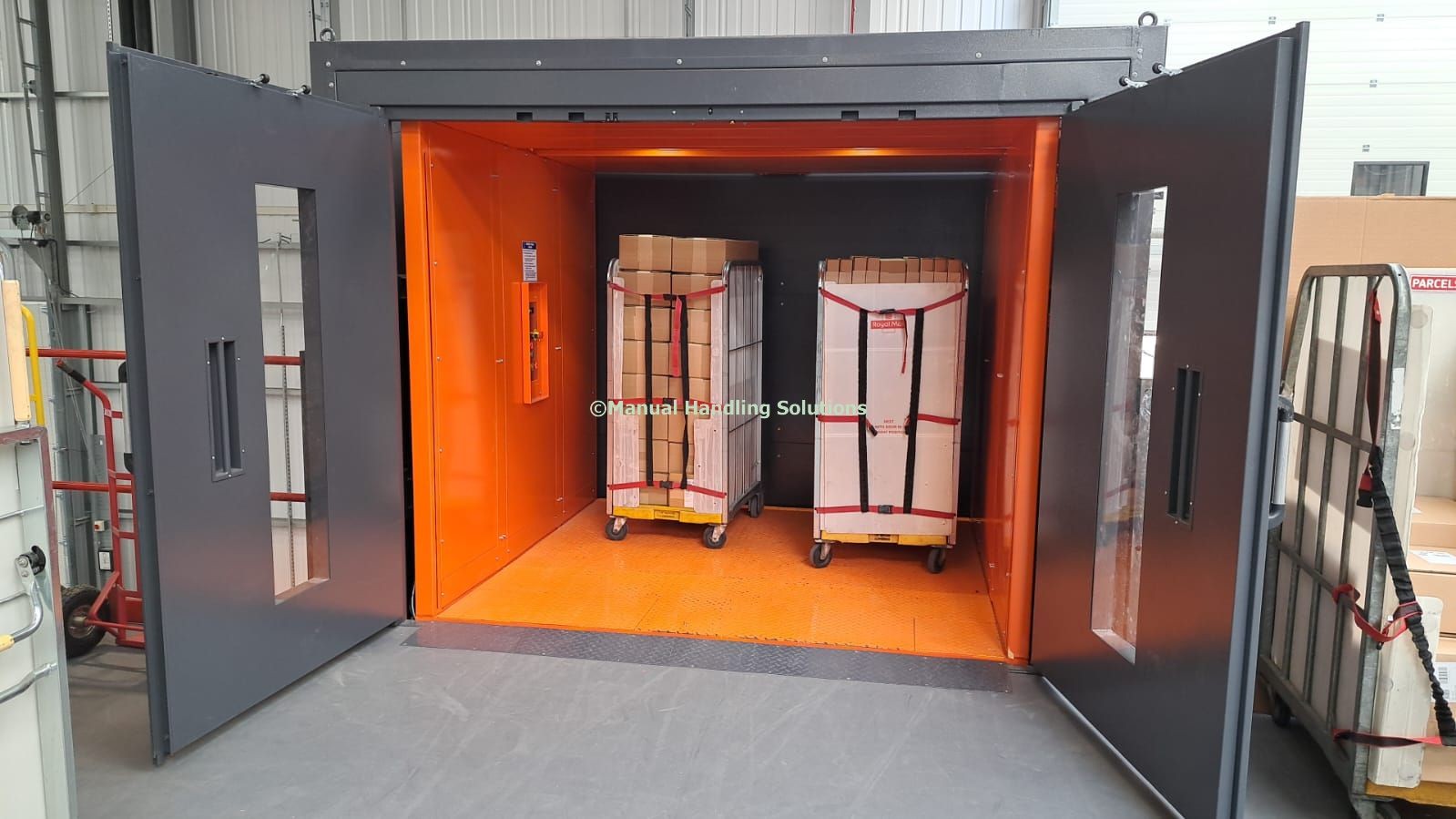

Mezzanine Goods Lift 1 Trained Operator MHS

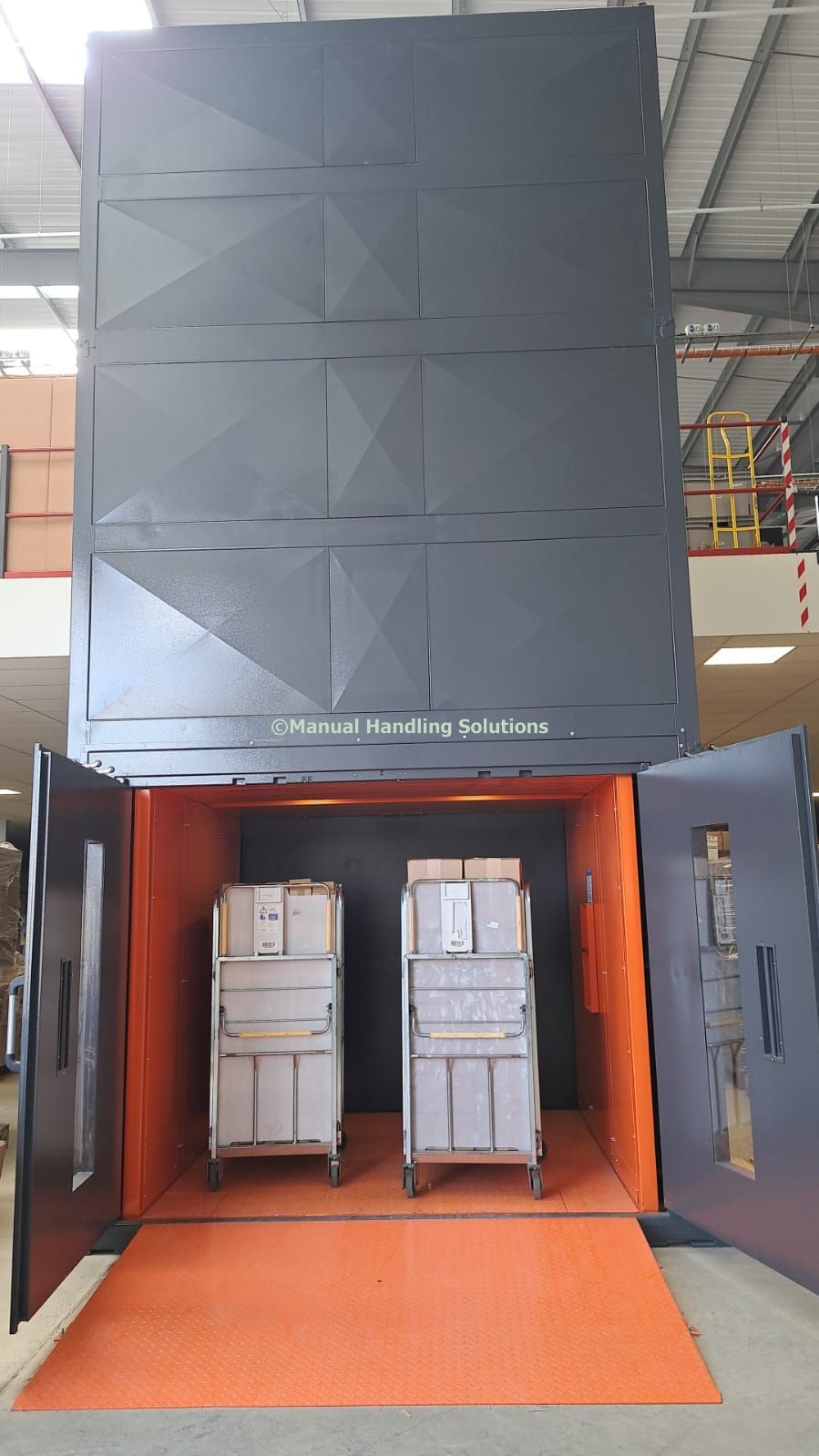

Mezzanine Goods Lift 1 Trained Operator Onder

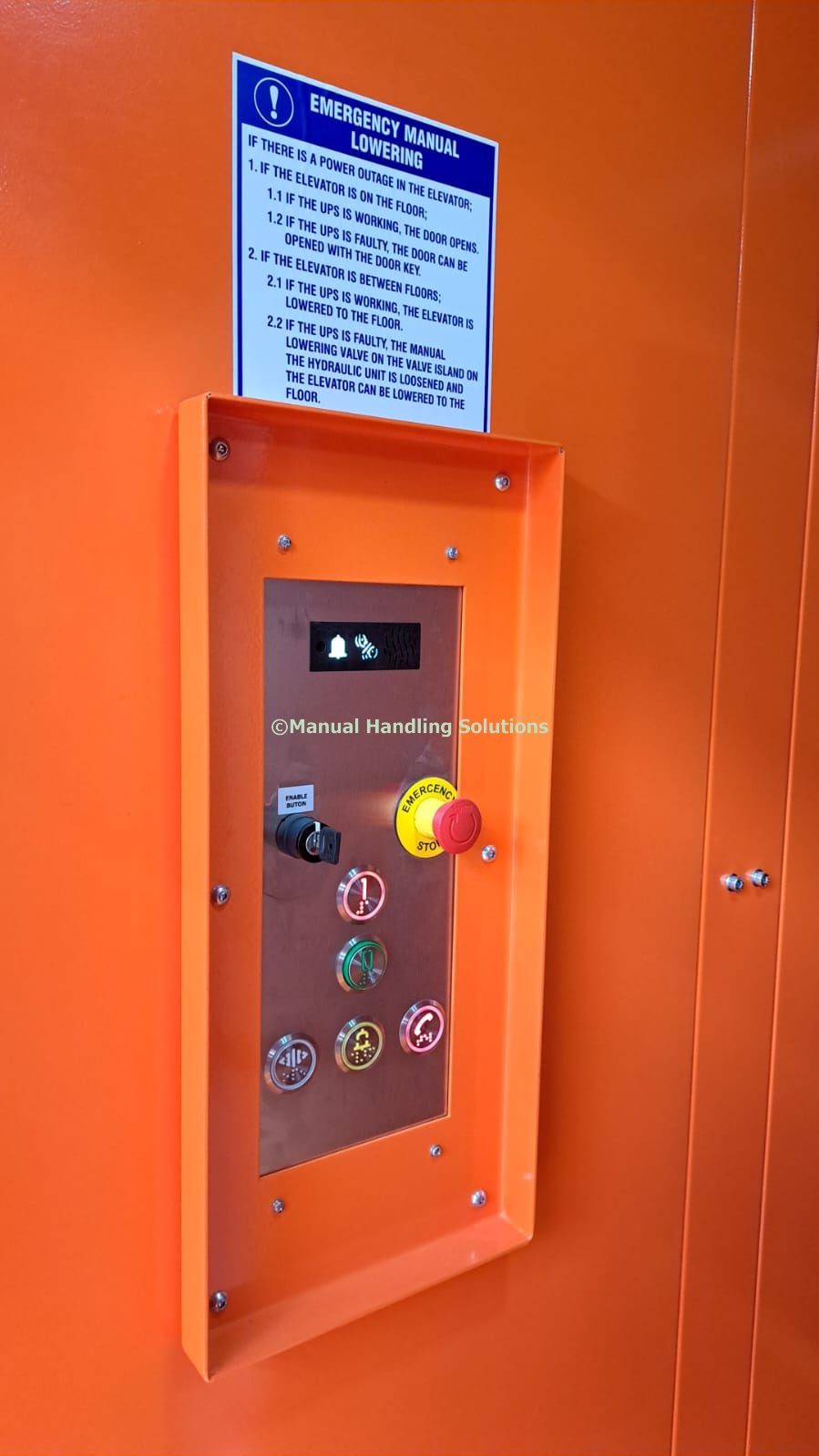

Mezz Goods Trained Operator Control Panel

lightbox gallery phpby VisualLightBox.com v6.1

A trained attendant goods lift is a specific type of heavy-duty lift designed to transport goods between floors while allowing one trained personnel to travel with the load. These lifts feature enhanced safety controls, such as constant pressure buttons and emergency communication systems, for use in settings like warehouses, department stores, and supermarkets where goods require monitoring or handling during transit. They are ideal for situations where stairs are distant, offering a more secure and convenient method of moving freight than a goods-only lift.

Manual Handling Solutions – Attended Goods Lifts offer bespoke custom designed materials handling and lifting equipment. We provide some of the most advanced handling equipment available from standard products to a bespoke solution. Our range of lifting equipment and materials handling products are by far the most sophisticated and technically advanced and manufactured to the highest standard. As a Handling Solutions provider our goal is to work closely with our customers and bring the most technically advanced handling products – solutions to market.

The range of goods lifts from Manual Handling Solutions provides the ideal solution to your vertical movement needs. Widely used in distribution facilities, warehouses, self-storage, retail storage areas, museums, theatres, hotels, and many other environments, mezzanine lifts facilitate the increased use of vertical space in storage areas and make it easy to safely and quickly transfer goods from first floor level to a raised floor or multi floor landings. Mezz lifts can also be installed along the edge of the raised floor or in a specially cut aperture within in the mezzanine.

A Goods Lift from MHS is a cost-effective solution to transport bulky or heavy items. Health and Safety obligations dictate that you must provide a safe and injury free workplace – a Goods Lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. Need something tailored to your specification then our custom-made lift services can help contact Manual Handling Solutions to discuss your exact requirements. Trade enquires welcome.
