Goods Lifts – Manual Handling Solutions

Mezzanine Goods Lift New Hythe

Mezzanine Goods Lift New Hythe

Mezzanine Goods Lift New Hythe

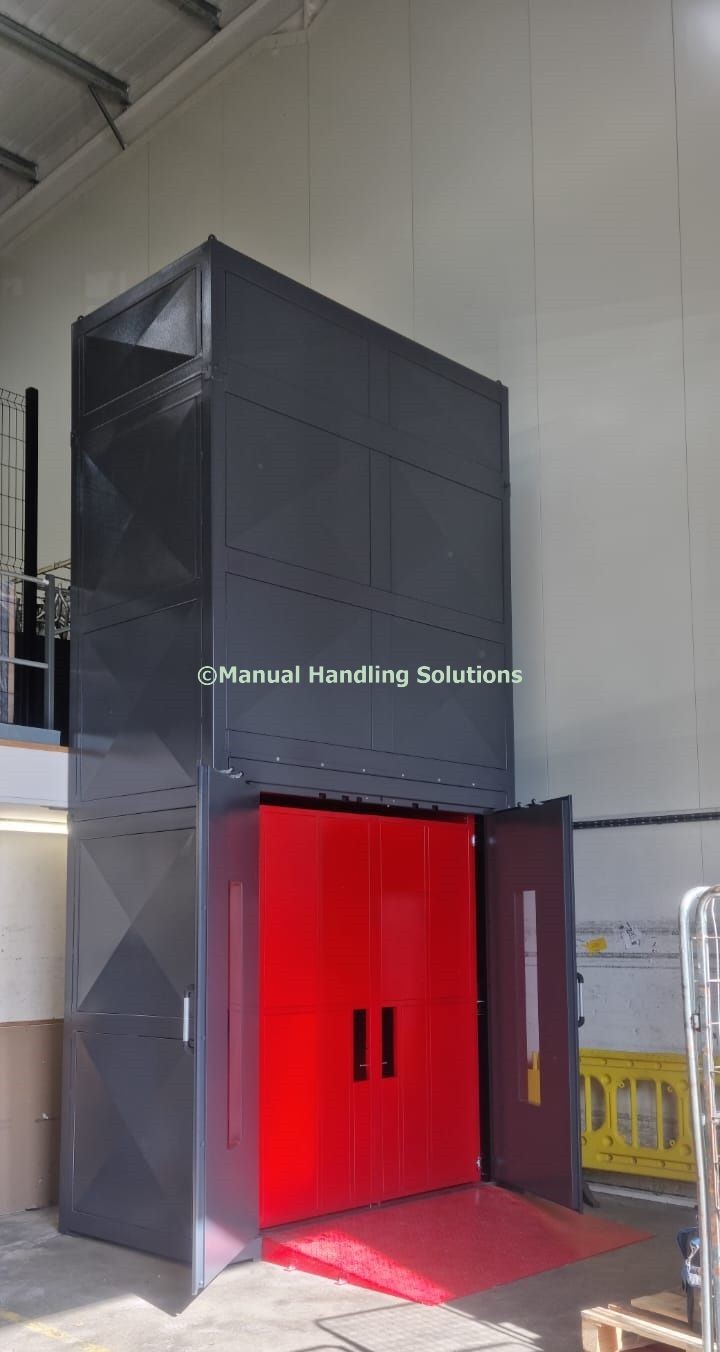

500kg through car double column 2 stop hydraulic Mezzanine Goods Lift installed Access Park, New Hythe Lane, New Hythe, Aylesford ME20 7FE.

Mezz Goods Lift with FFL 3000mm and platform size 2000mm x 1200mm fitted with 2500mm high fully enclosed cabin, LED lighting and 2500mm high twin opening interlocked gates finished in Red RAL 3001.

To assist loading at the lower level the lift is supplied with loading ramp H120mm x W2040mm x L1250mm finished Traffic Red RAL 3001

Mezzanine Goods Lift New Hythe is a freestanding self-supporting lift structure manufactured from 120mm x 120mm box section steel with clad infilled panels Grey RAL 7024.

Goods Lift fitted with 2500mm high double loading gates cladded with Perspex viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper-level structure is 2790mm.

Mezzanine Goods Lift fitted with “Press to Go” one touch controls with emergency stop at both levels fitted as standard.

To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 5.5Kw control voltage 24-volt IP55.

General Specification

  • Emergency lowering system when power is cut off.
  • Prewired control box included magnetic starter and overload fuse.
  • Upper-level travel limit switch and overload relief valve
  • Hydraulic cylinders feature emergency velocity fuse if line breaks.
  • Control points are fitted to both ground and upper floor levels.
  • The hydraulic power pack and electrical system housed separately at ground level.
  • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
  • Lift loaded and unloaded with hand pallet truck.
  • CE plated and built-in compliance with the Machinery Directive2006/42/EC
  • Installation; Access Park, New Hythe Lane, New Hythe, Aylesford ME20 7FE
Hythe Mezzanine Goods Lifts Mezzanine Warehouse Goods only Lift Mezz Lifts from Manual Handling Solutions Bespoke Lifting Solutions Kent Double Column Goods Lifts MHS Fully Enclosed Cabin Goods Lift picture photo siteby VisualLightBox.com v6.1

Manual Handling Solutions – Goods Lifts offer bespoke custom designed materials handling and lifting equipment. We provide some of the most advanced handling equipment available from standard products to a bespoke solution. Our range of lifting equipment and materials handling products are by far the most sophisticated and technically advanced and manufactured to the highest standard. As a Handling Solutions provider our goal is to work closely with our customers and bring the most technically advanced handling products – solutions to market.

The range of mezzanine goods lifts from Manual Handling Solutions provides the ideal solution to your vertical movement needs. Widely used in distribution facilities, warehouses, car dealerships, retail storage areas, museums, theatres, hotels, and many other environments, mezzanine lifts facilitate the increased use of vertical space in storage areas and make it easy to safely and quickly transfer goods from first floor level to a raised floor or multi floor landings. Goods lifts can also be installed along the edge of the raised floor or in a specially cut aperture within in the mezzanine.

A mezzanine goods lift from MHS is a cost-effective solution to transport bulky or heavy items. Health and Safety obligations dictate that you must provide a safe and injury free workplace – a Goods Lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. Need something tailored to your specification then our custom-made lift services can help contact Manual Handling Solutions to discuss your exact requirements. Trade enquires welcome.

Mezzanine Goods Lifts covering; Sittingbourne, Sheerness, New Hythe, Aylesford, Kent, West Malling, East Malling, Maidstone, Chatham, Gillingham, Rochester, Rainham.

Contact us on Tel 01553 811977 or email us at sales@manualhandlingsolutions.co.uk

Visit our main website www.manualhandlingsolutions.co.uk
