Mezzanine Goods Lift Wrexham

Mezzanine Goods Lift Wrexham

Mezzanine Goods Lift Wrexham

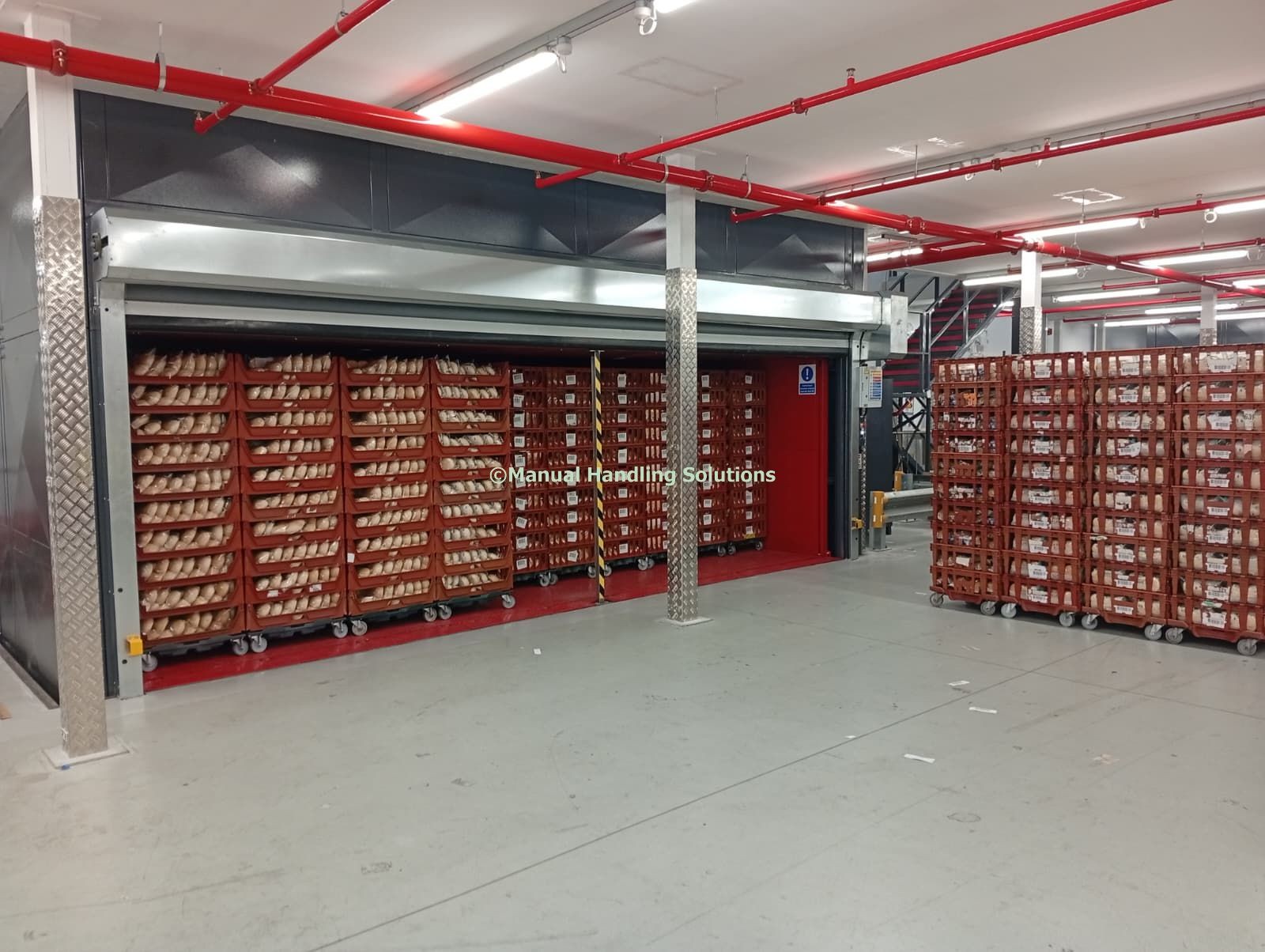

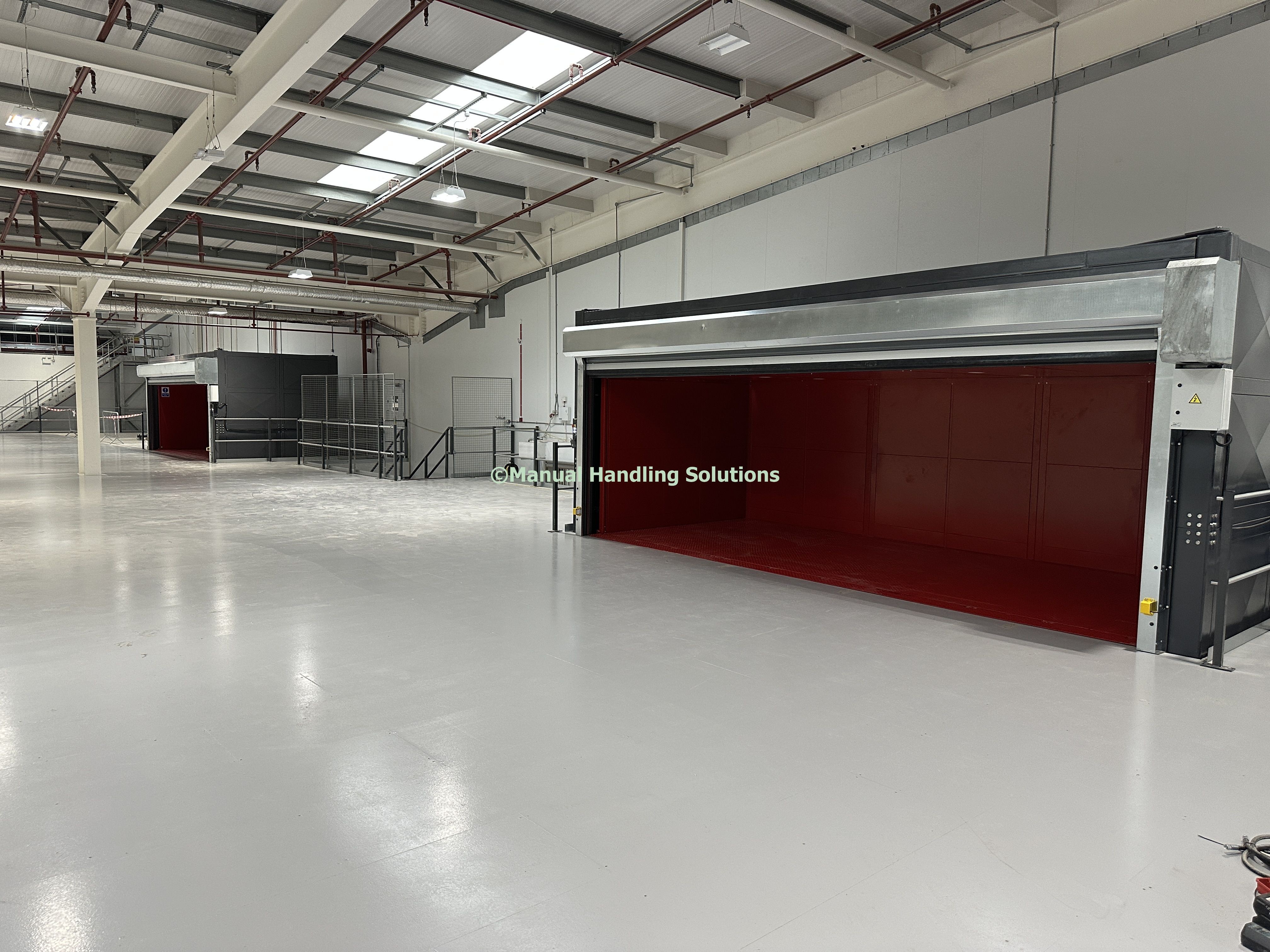

2 stop 7000kg heavy duty pit installed four column hydraulic Mezzanine Goods only Lift installed Ash Road South, Wrexham Industrial Estate, Wrexham LL13 9UG with a finished floor level 3640mm and platform size 6300mm x 2600mm. Platform fitted 3 sides with a fully enclosed cabin 2000mm high with LED’s.

At the entrance to the platform is a H1800mm safety light beam / light curtain, an infrared safety device that detects obstacles in the lift door opening to prevent trapping people or goods. If an object or person interrupts any of these beams, the system registers the interruption and the lift automatically stops.

Incorporated within the platform is a hydraulic drop-down pallet stop which when lowered acts a bridge plate between the platform and support structure. Goods lift recessed in a 500mm deep pit for flush entry into the lift.

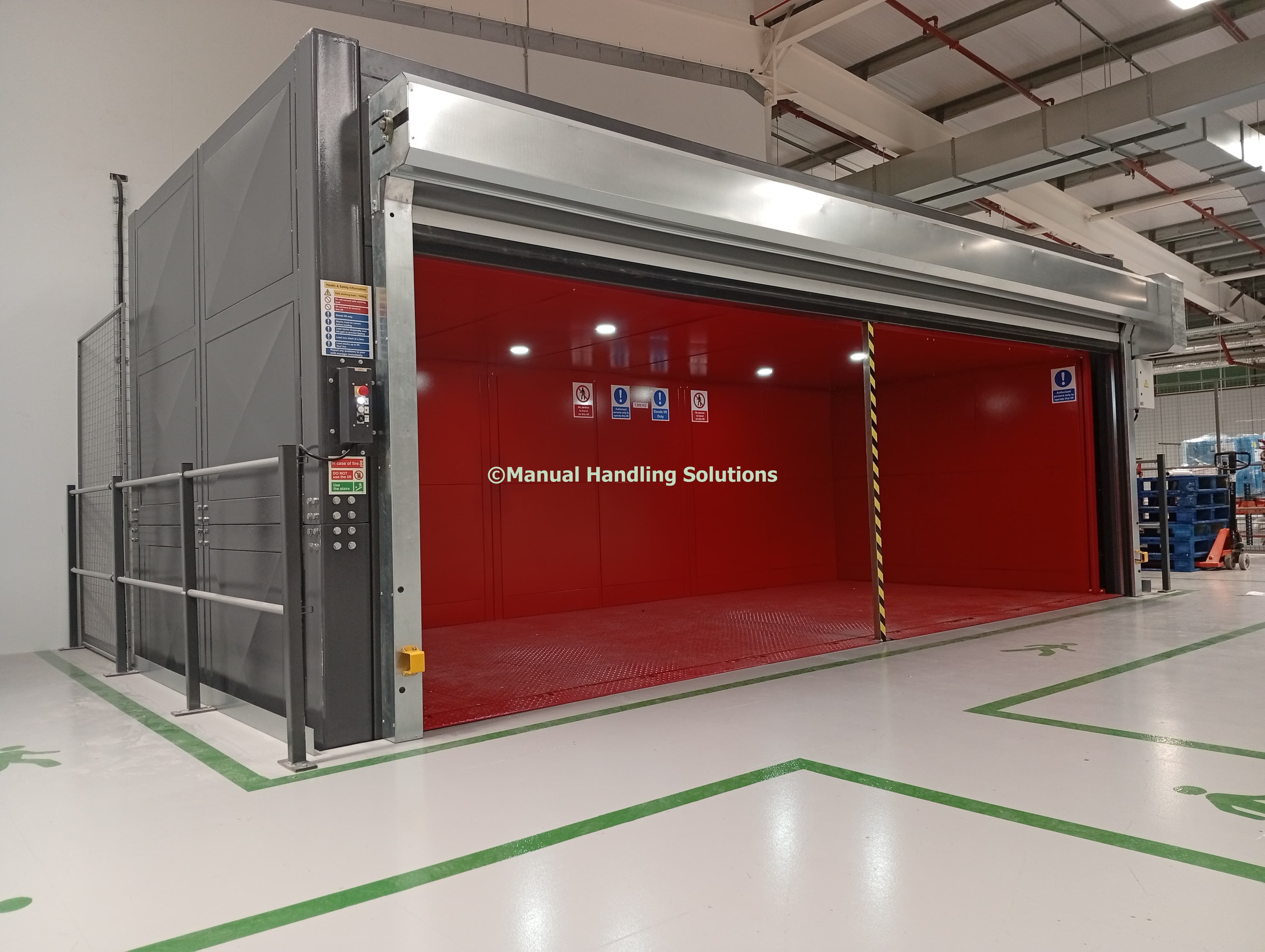

HD Goods Lift Wrexham is a self-supporting structure manufactured from 150mm x 150mm box section steel with clad infilled panels Grey RAL 7024. Goods lift fitted with 2000mm high hybrid roller shutter doors at both entrances with viewing pane and these are fitted with interlock system to ensure that the lift will not operate until the pallet stop is retracted and the roller shutters doors are closed. The overall height of the upper-level structure is 2600mm.

Lift platform fitted with shoot bolts to stabilise the platform and remove any hydraulic ‘bounce’ when fully loaded at the upper floor. “Press to Go” one touch controls with emergency stop at both levels fitted as standard.

To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D1000mm x L2100mm x H1800mm. Electrics 3 phase, 400v, 29.4Kw control voltage 24-volt IP55.

General Specification

  • Emergency lowering system when power is cut off.
  • Prewired control box included magnetic starter and overload fuse.
  • Upper-level travel limit switch and overload relief valve
  • Hydraulic cylinders feature emergency velocity fuse if line breaks.
  • Control points are fitted to both ground and upper floor levels.
  • The hydraulic power pack and electrical system housed separately at ground level.
  • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
  • Goods Lift is CE plated and built-in compliance with the Machinery Directive 2006/42/EC
  • Siemens Logo PLC controlled
  • Blain Hydraulic Valve System
  • Switch control maintenance props for service works If maintenance props are in the open position, all functions are disabled
  • Maintenance mode for safe service works. When maintenance mode is activated on the control panel, all other controllers and switches are disabled, and only the maintenance controller is activated.
  • Chain Control In case of a failure (if chain tension is lost) while lowering the lift, the switch is activated and the lowering function is deactivated
  • Inverter
  • Heavy Duty upgrade to 80,000 cycles
  • Installation; Ash Road South, Wrexham Industrial Estate, Wrexham LL13 9UG
Hydraulic Heavy Duty Goods Lift Bakery Manual Handling Solutions HD Goods Lift Bakery Mezzanine Floor Goods Lift Heavy Duty Mezzanine Floor Goods Lifts HD Mezzanine Goods Lift Pit MHS Power Cabinet Goods Lift HD Roller Shutter Door HD Goods Lift 2 7000kg Goods Lifts 4 Column Heavy Duty Mezzanine Goods Lift Bakery HD Mezzanine Floor Goods Lift Wrexham Bakery Heavy Dut Mezzanine Goods Lift Bespoke Lifting Solutions Wrexham Goods Lift Manual Handling Solutions Onder lightbox gallery phpby VisualLightBox.com v6.1

Manual Handling Solutions – Goods Lifts offer bespoke custom designed materials handling and lifting equipment. We provide some of the most advanced handling equipment available from standard products to a bespoke solution. Our range of lifting equipment and materials handling products are by far the most sophisticated and technically advanced and manufactured to the highest standard. As a Handling Solutions provider our goal is to work closely with our customers and bring the most technically advanced handling products – solutions to market.

The range of heavy-duty mezzanine goods lifts from Manual Handling Solutions provides the ideal solution to your vertical movement needs. Widely used in distribution facilities, warehouses, car dealerships, retail storage areas, museums, theatres, hotels, and many other environments, mezzanine lifts facilitate the increased use of vertical space in storage areas and make it easy to safely and quickly transfer goods from first floor level to a raised floor or multi floor landings. Mezz Goods lifts can also be installed along the edge of the raised floor or in a specially cut aperture within in the mezzanine.

A HD mezzanine goods lift from MHS is a cost-effective solution to transport bulky or heavy items. Health and Safety obligations dictate that you must provide a safe and injury free workplace – a Goods Lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. Need something tailored to your specification then our custom-made lift services can help contact Manual Handling Solutions to discuss your exact requirements. Trade enquires welcome.

New from MHS – A “goods lift with 1 trained attendant” is a lift designed to transport heavy goods and one person simultaneously, allowing an attendant to operate the lift and manage the load within the car. These lifts include additional safety features and interlocks to ensure the attendant’s safety, such as internal communication system.

Heavy Duty Goods Lifts covering; Mold, Saltney, Winsford, Wrexham, Chester, Whitchurch, Oswestry, Shrewsbury, Deeside, Crewe, Nantwich, Ellesmere.
