Mezzanine Goods Lifts Durham

Mezzanine Goods Lifts Durham Mezzanine Goods Lifts Durham

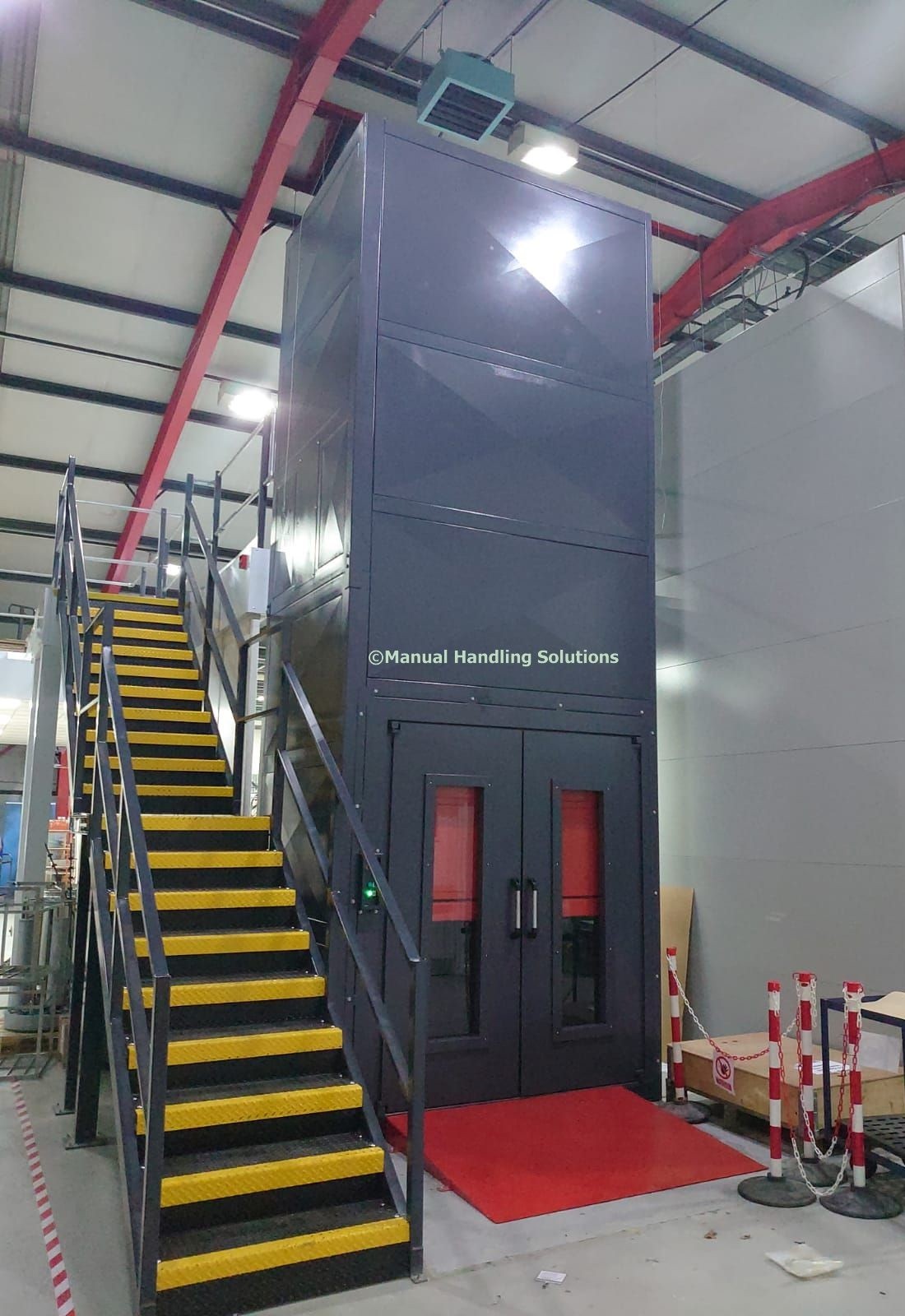

Bespoke hydraulic 250kg Goods Lift through car loading with a single mast installed Medomsley Road, Consett, County Durham, with a FFL 3500mm and with a platform size 1400mm x 1400mm fitted with 1100mm high infilled panels on the non-loading sides and twin opening interlocked gates finished in Traffic Red RAL 3020

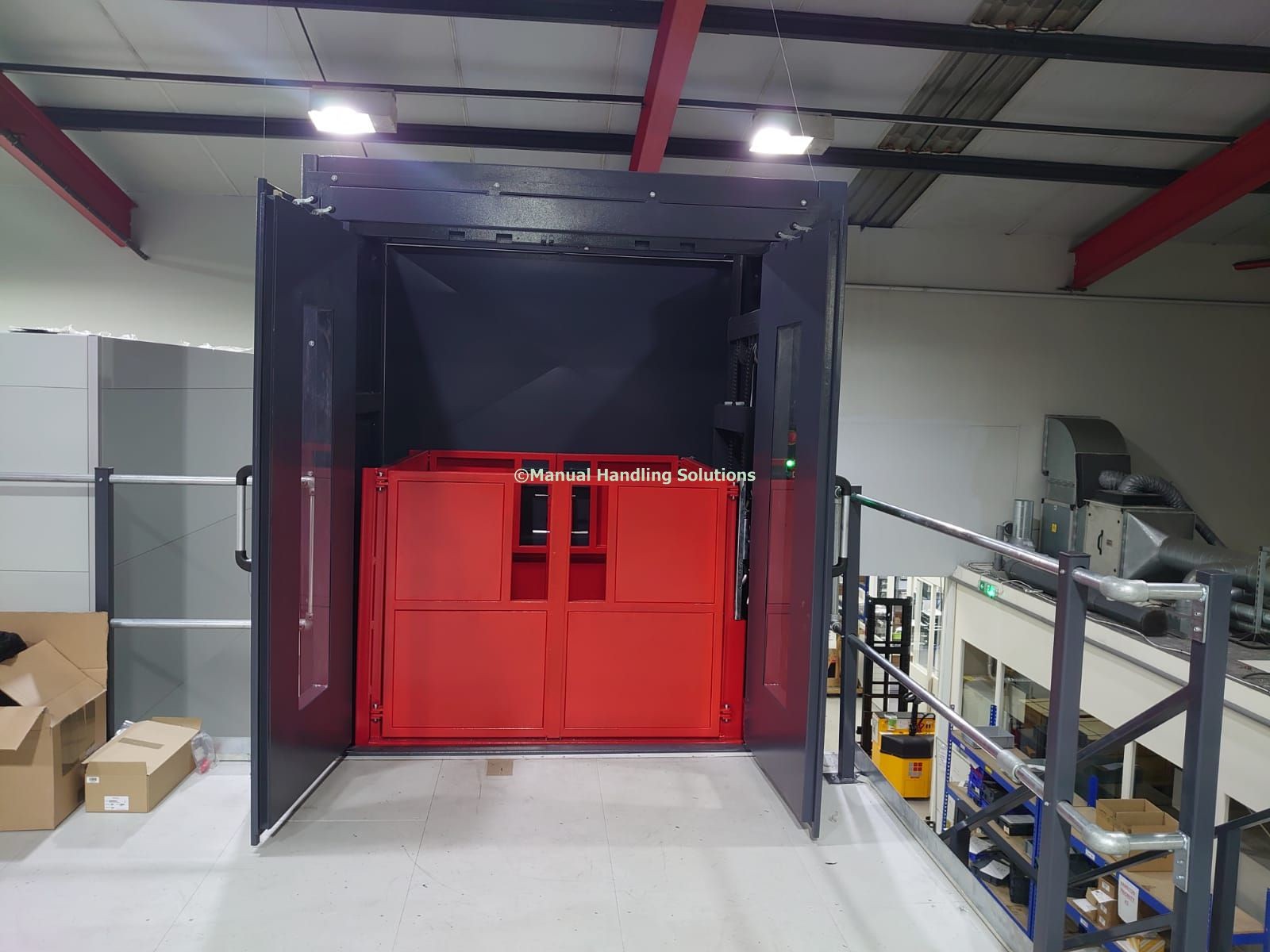

The self-supporting lift structure is manufactured from 100mm x 100mm box section steel with clad infilled panels finished Grey RAL 7024. Goods lift fitted with 2000mm high double loading gates cladded with Perspex viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper level structure is 2250mm.

Goods lift fitted with “Press to Go” one touch controls with emergency stop at both levels fitted as standard.

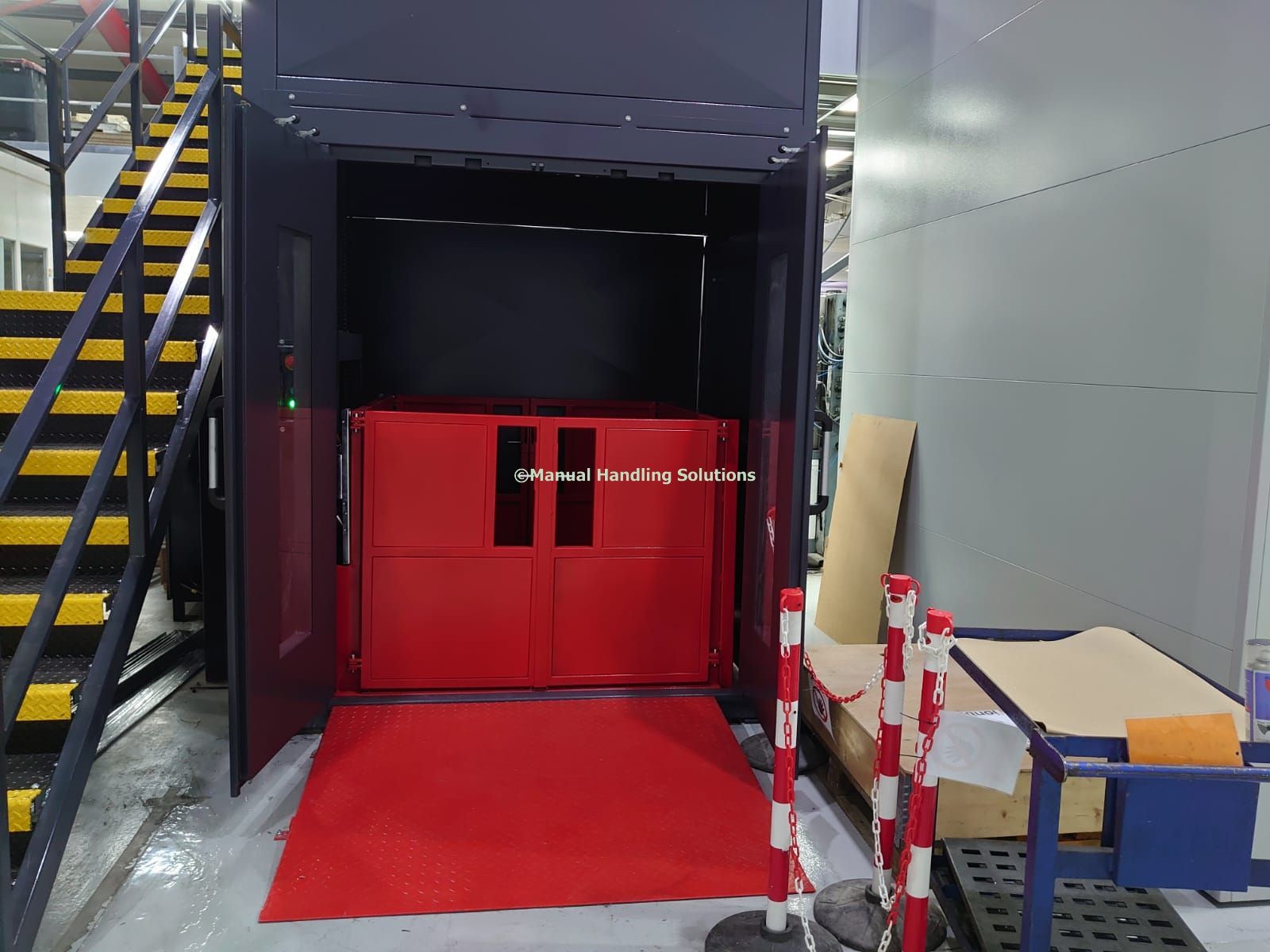

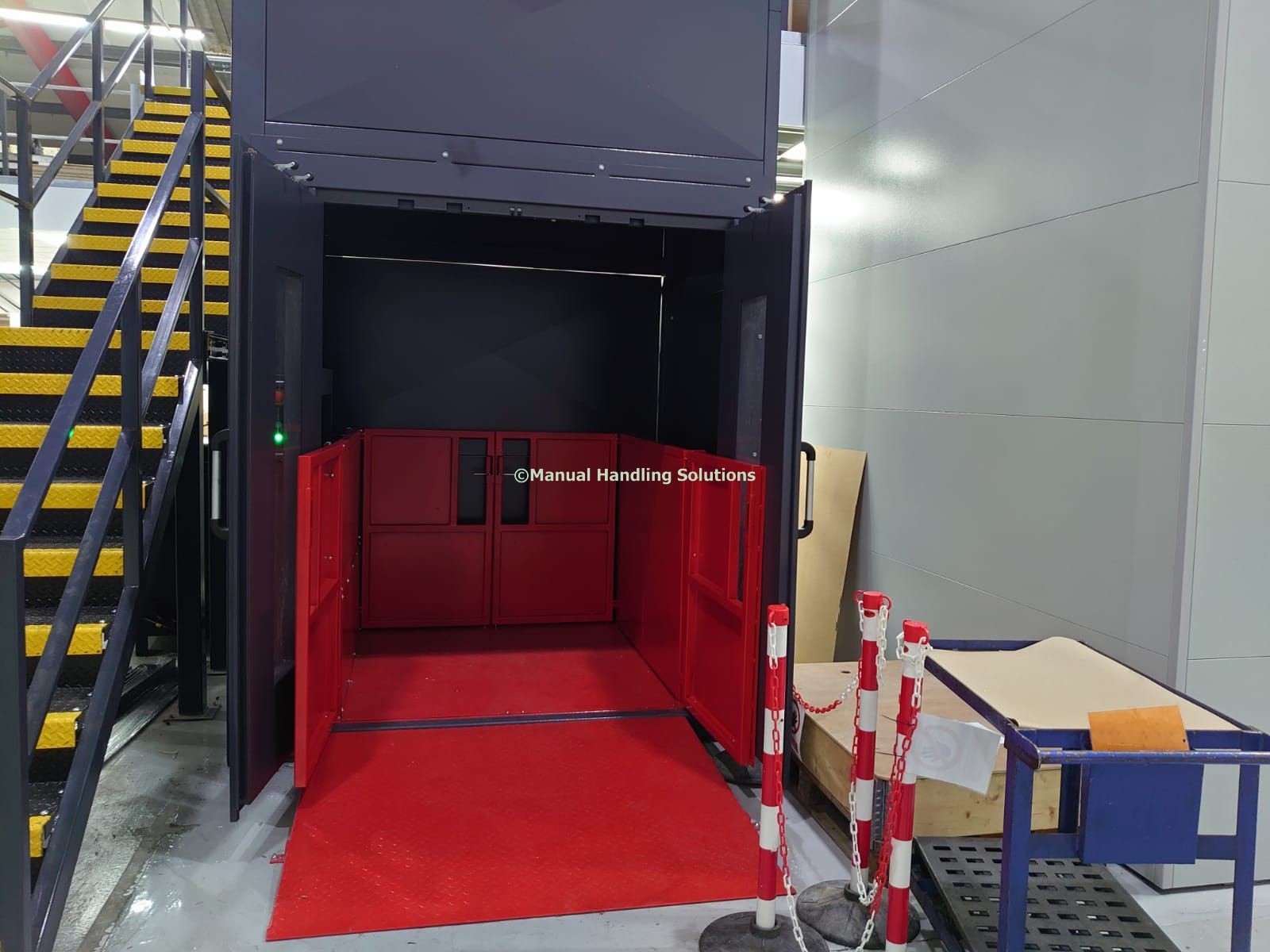

At the lower level a fixed ramp 1250mm long x 1480mm wide will be provided to assist loading on to the 120mm deep platform finished Red RAL 3020
Mezzanine Floor Goods Lifts Durham Mezzanine Goods Lift Durham Mezzanine Goods Lifts Consett Mezzanine Goods Lifts Durham Mezz Goods Lifts Durham Consett Mezzanine Goods Lifts Hydraulic Mezzanine Goods Lifts Durham lightbox MACby VisualLightBox.com v6.1

To prevent damage from pallet trucks and fork lift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 1.5Kw control voltage 24 volt IP55.

General Specification

  • Emergency lowering system when power is cut off
  • Pre wired control box included magnetic starter and overload fuse
  • Upper level travel limit switch and overload relief valve
  • Hydraulic cylinders feature emergency velocity fuse if line breaks
  • Control points are fitted to both ground and upper floor levels
  • The hydraulic power pack and electrical system housed separately at ground level
  • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor
  • Installation; Number One Industrial Estate, Medomsley Road, Consett, County Durham DH8 6TS

Manual Handling Solutions offer a versatile range of hydraulic goods lifts; they have been designed and manufactured to offer simple, economical and reliable solution to heavy lifting problems for a variety of applications, including warehouses, industries, supermarkets, restaurants, hotels, hospitals, private residences and office buildings. A goods lift from Manual Handling Solutions is a cost effective solution to transport bulky or heavy items in your commercial application. Health and Safety obligations dictate that you must provide a safe and injury free work place – a Goods Lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. We can custom design a goods lift system to specifically meet your needs. Goods Lift providers throughout Newcastle, Sunderland, Durham, Middlesbrough, South Shields and the North East.

Custom designed Goods Lifts the perfect solution to multi-floor transportation of equipment and goods, reducing the risk to employees, increasing efficiency and ultimately improving the bottom line. The goods lift range is fully bespoke to fit all shapes and sizes of goods.

We’re happy to talk you through our diverse range of bespoke goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.
